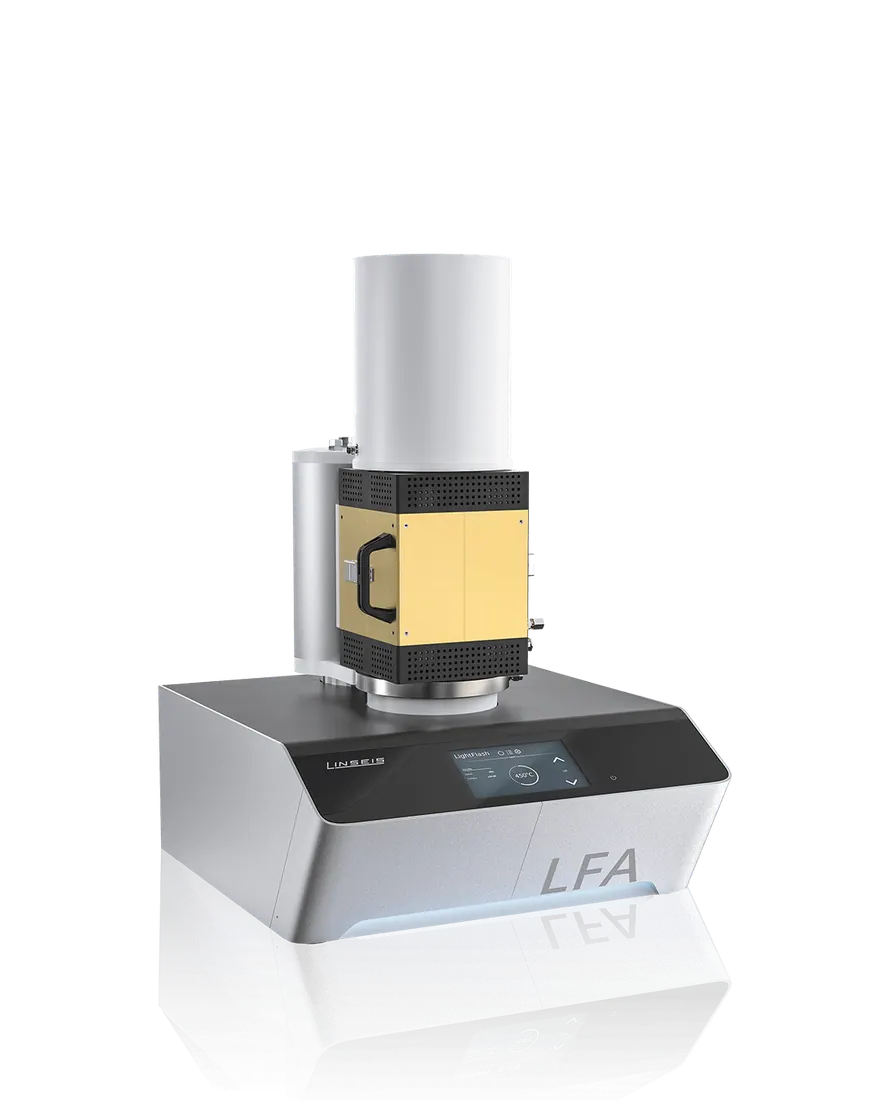

LFA L51
Brand: Linseis | Category: Nanotechnology
The LFA L51 is a light flash analyser for thermal diffusivity, thermal conductivity and specific heat. A software-controlled light flash heats the sample and the temperature response is captured at 2.5 MHz, which suits thin or highly conductive materials. Linseis states measurements to +1250 C.
Technical Specifications
| Parameter | Value |
|---|---|
| Flash source | software-controlled light flash (15 J/pulse, 50 to 2000 us pulse width) |
| Data acquisition rate | 2.5 MHz |
| Vacuum capability | down to 10-5 mbar |
| Multi-sample measurement | up to 18 samples |
| Amplifier electronics | 16-bit resolution |
| Evaluation models | 2-layer and 3-layer, Cowan 5 and 10 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thermal Analysis & Thermophysical Measurement
- LFA L52
The LFA L52 is a high-power laser flash analyser for thermophysical properties such as thermal diffusivity and thermal conductivity. A laser pulse heats the sample and the transient response is recorded at 2.5 MHz. Measurements run in inert, reducing or oxidising atmospheres, or under vacuum.
- TMA L72
The TMA L72, formerly sold as the TMA PT 1600, is a thermomechanical analyser that measures expansion, softening and deformation under a defined load. It works up to 1600 C at a resolution of 0.125 nm and supports three-point bending tests. Atmospheres can be inert, oxidising or reducing.
- TF-LFA L54
The TF-LFA L54 is a laser flash analyser for thin films. Linseis states measurement of thermal conductivity in the range of 80 nm to 20 um, at temperatures from room temperature up to 500 C. An anisotropy option gives in-plane and cross-plane values on multilayer and 2D materials.
