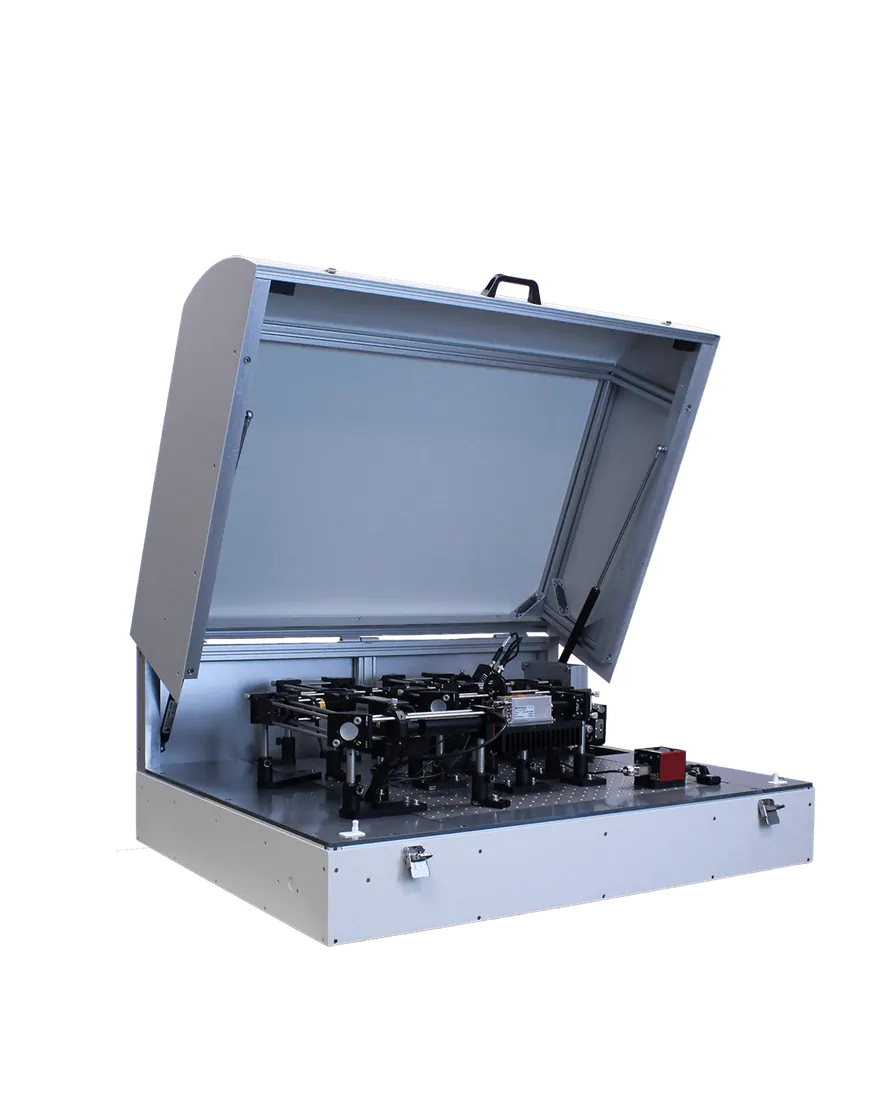

TF-LFA L54
Brand: Linseis | Category: Nanotechnology
The TF-LFA L54 is a laser flash analyser for thin films. Linseis states measurement of thermal conductivity in the range of 80 nm to 20 um, at temperatures from room temperature up to 500 C. An anisotropy option gives in-plane and cross-plane values on multilayer and 2D materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Film thickness | from a few nanometres up to several micrometres |
| Temperature range | room temperature up to 500 C |
| Anisotropy option | in-plane and cross-plane thermal conductivity of multilayer and 2D materials |
| Specification | 3-Omega configurable for both in-plane and cross-plane measurements |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
