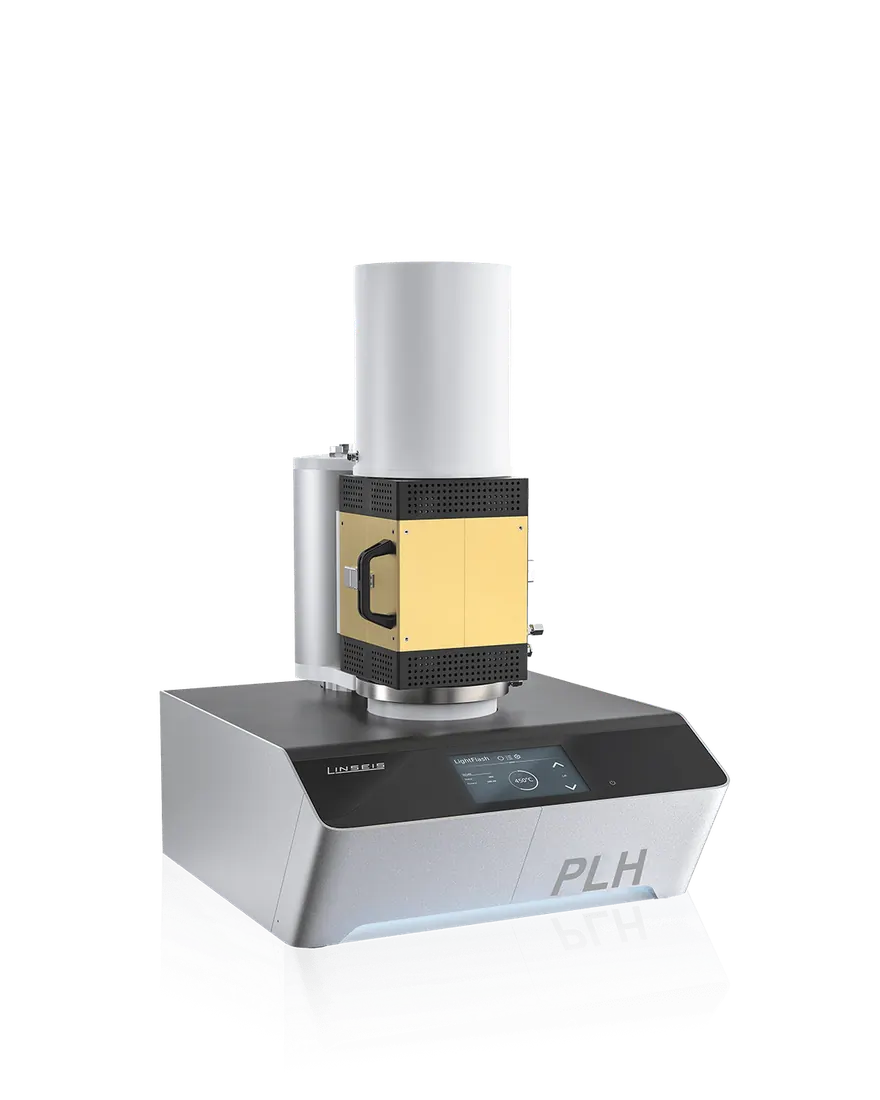

PLH L53
Brand: Linseis | Category: Nanotechnology
The PLH L53 uses periodic laser heating to determine the thermal diffusivity of thin samples. It covers a diffusivity range of 0.01 to 2000 mm2/s on sample thicknesses of 10 to 500 um, using a continuous wave diode laser. It is used to characterise films, foils and small specimens.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | room temperature up to 300 C |
| Heating rates | 0.01 to 20 C/min |
| Sample thickness | 10 to 500 um |
| Laser source | CW diode laser up to 5 W, wavelength 450 nm |
| Thermal diffusivity range | 0.01 to 2000 mm2/s (thickness dependent) |
| Accuracy | +/-5 %, reproducibility: +/-5 % |
