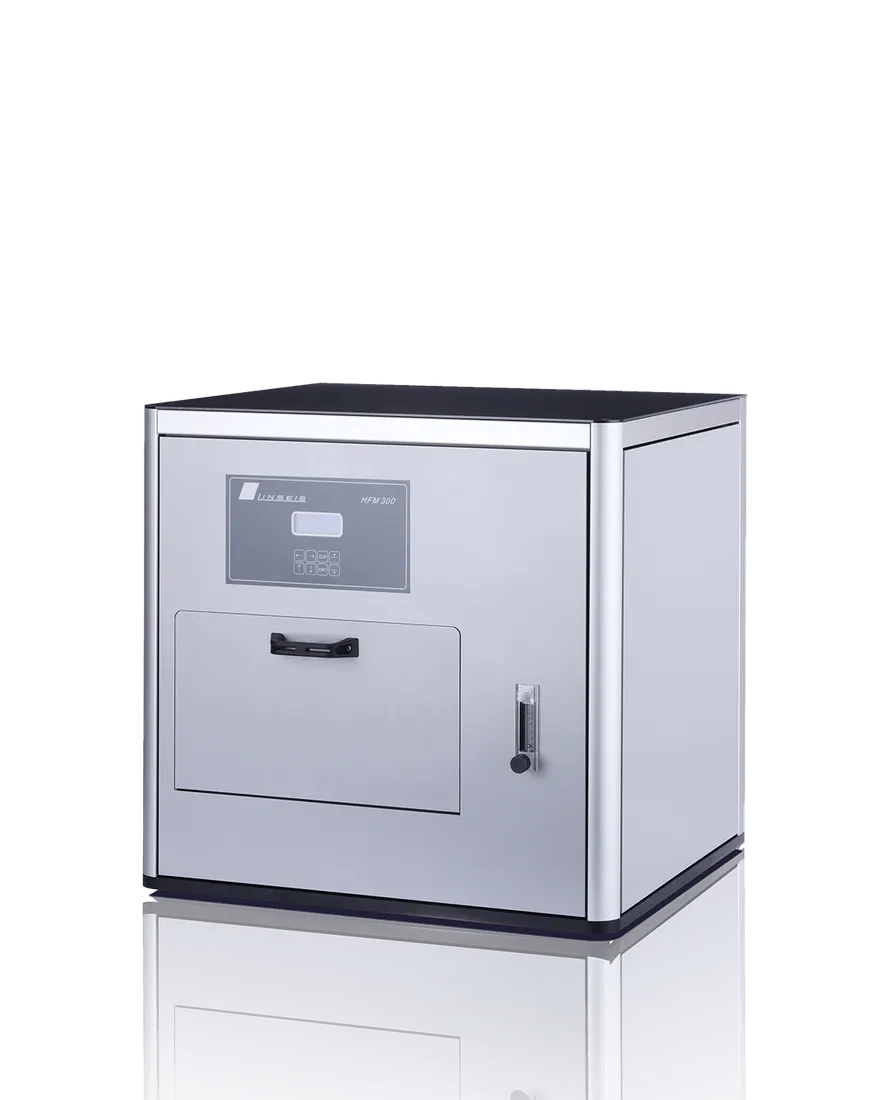

HFM L57
Brand: Linseis | Category: Nanotechnology
The HFM L57 is a heat flow meter that determines the thermal conductivity of insulating and low conductivity materials. The sample is held between two temperature-controlled plates and the heat flow through it is measured. Design follows ASTM C518, JIS A1412, ISO 8301, DIN EN 12664 and DIN 12667.
Technical Specifications
| Parameter | Value |
|---|---|
| Sample size | 200 x 200 mm up to 90 mm thick (L57 200), 300 x 300 mm up to 100 mm thick (L57 300), 600 x 600 mm up to 200 mm thick (L57 600) |
| Temperature range (plates) | 0 C to 90 C, -20 C up to 90 C, -35 C up to 90 C (L57 200 and L57 300); -20 to 70 C (L57 600) |
| Measuring range thermal conductivity | 0.001 to 0.5 W/m*K, with extension set 0.001 to 2.5 W/m*K |
| Thermal resistance measuring range | 0.2 to 8.0 m2*K/W, with extension set 0.036 to 9.0 m2*K/W (L57 200) |
| Temperature resolution | 0.0001 C |
| Reproducibility | 0.25% / 0.5% |
