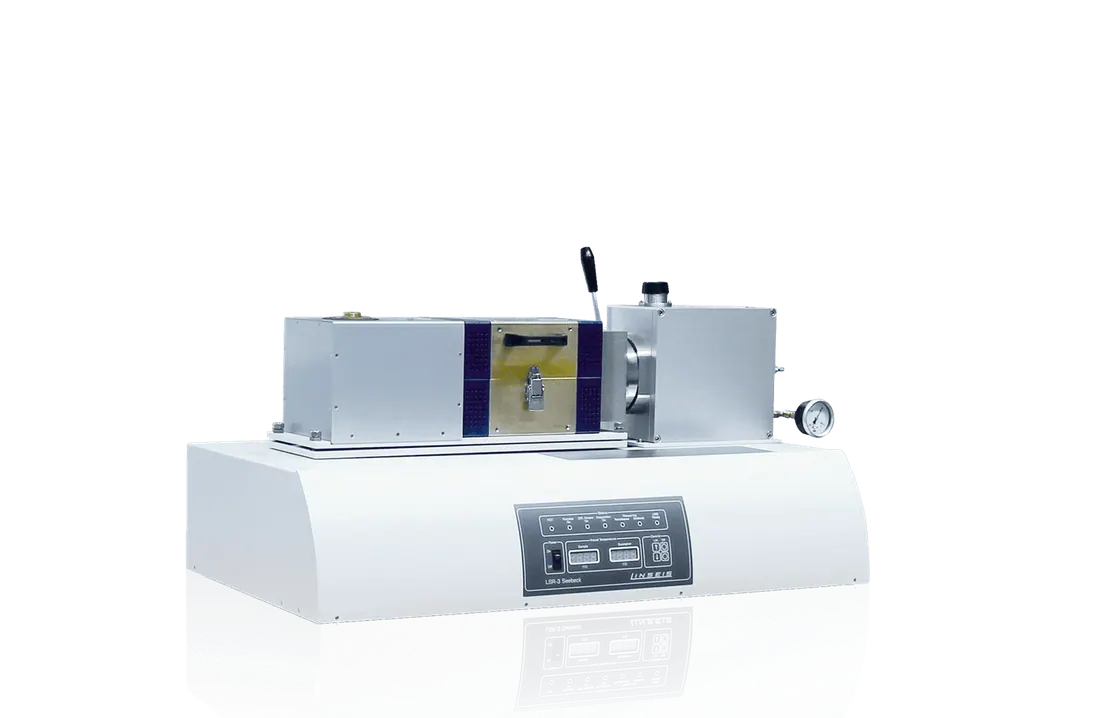

LZT L32
Brand: Linseis | Category: Nanotechnology
The LZT L32, also published as the LZT-Meter, combines an LSR and an LFA in one instrument, so thermal conductivity, electrical resistance and the Seebeck coefficient are measured on the same sample. These values give the thermoelectric figure of merit ZT. Interchangeable furnaces cover -100 C to 1100 C.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | infrared furnace RT up to 800 C/1100 C, low temperature furnace -100 C to 500 C |
| Measurement method | Seebeck coefficient static DC method / slope method, electrical resistance four-point measurement |
| Measuring range Seebeck coefficient | 1 uV/K to 250 mV/K (static DC method), accuracy +/-7 % / repeatability +/-3.5 % |
| Sample size (cylinder or rectangle) | 2 to 5 mm base area and max. 23 mm long |
| Sample size round (disc shape) | 10, 12.7, 25.4 mm |
| Atmosphere | inert, reducing, oxidising, vacuum |
