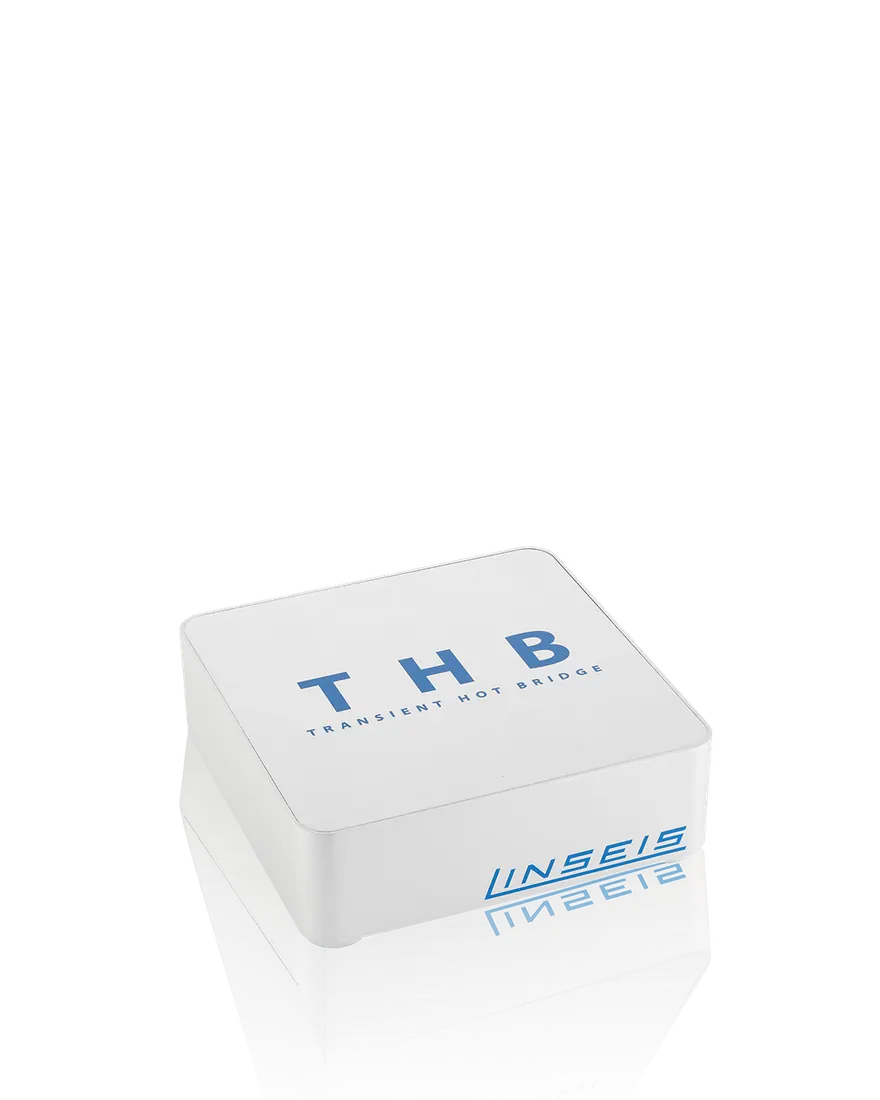

THB L56
Brand: Linseis | Category: Nanotechnology
The THB L56 is a transient hot bridge instrument for thermal conductivity, thermal diffusivity and specific heat capacity. It measures absolute values on solids, liquids, pastes and powders with a sensor placed against the sample. Three model levels, Basic, Advanced and Ultimate, are offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Thermal conductivity | 0.01 up to 5 W/(m*K) (Basic), 0.005 up to 500 W/(m*K) (Advanced), 0.005 up to 1800 W/(m*K) (Ultimate) |
| Thermal diffusivity | 0.05 up to 50 mm2/s (Basic), 0.05 up to 300 mm2/s (Advanced), 0.05 up to 1200 mm2/s (Ultimate) |
| Specific heat capacity | 0.1 up to 5 J/gK (all models) |
| Measurement precision, thermal conductivity | better than 1 % |
| Measurement precision, thermal diffusivity and thermal capacity | better than 4 % |
| Furnace options | Peltier cooling (-20 to +50 C), heating cartridges (RT to 200 C), high temperature furnace (RT to 1000 C) |
