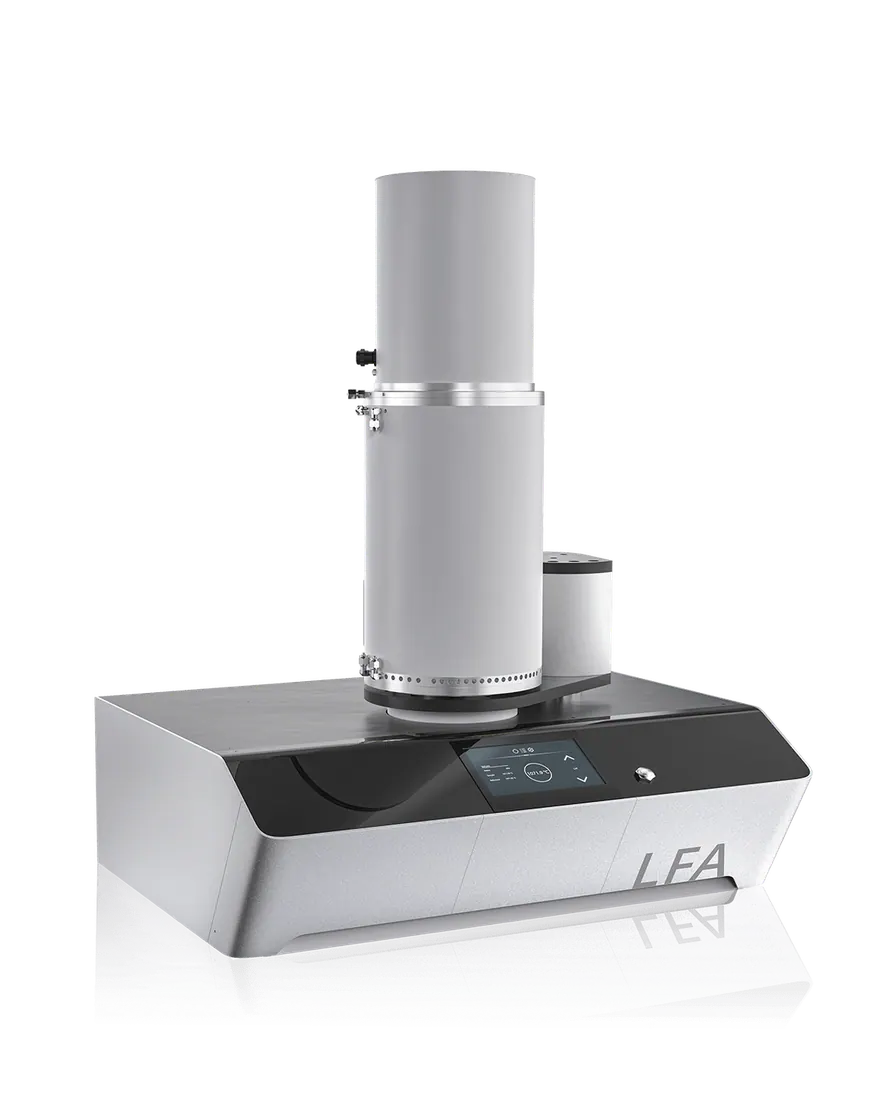

LFA L52
Brand: Linseis | Category: Nanotechnology
The LFA L52 is a high-power laser flash analyser for thermophysical properties such as thermal diffusivity and thermal conductivity. A laser pulse heats the sample and the transient response is recorded at 2.5 MHz. Measurements run in inert, reducing or oxidising atmospheres, or under vacuum.
Technical Specifications
| Parameter | Value |
|---|---|
| Data acquisition rate | 2.5 MHz |
| Atmosphere control | inert, reducing or oxidising |
| Vacuum | down to 10-5 mbar |
| Multi-sample measurement | up to 18 samples |
| Evaluation models | 2-layer and 3-layer, Cowan 5 and 10 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
