DIL L75 Nuclear
Brand: Linseis | Category: Nanotechnology

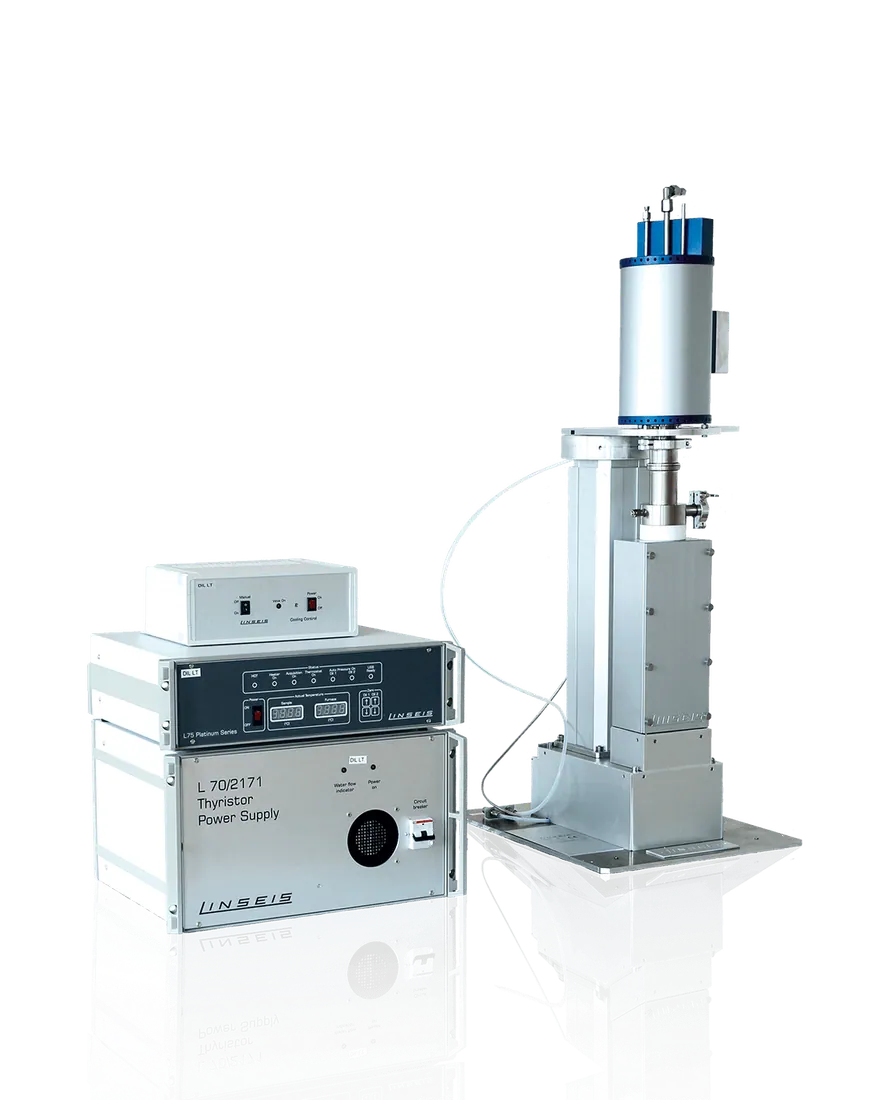

The DIL L75 Nuclear is the version of the DIL L75 dilatometer built for nuclear and radioactive samples. It measures the change in length of a sample with temperature, giving expansion, shrinkage and sintering data. LVDT or optical encoder measuring systems and up to 3 furnaces are available.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -263 up to 2800 °C |
| LVDT measuring range | +/- 2500 µm |
| Optical encoder measuring range | +/- 25000 µm |
| Optical encoder delta L resolution | 0.01 µm |
| Contact force | 10 mN up to 1 N |
| Sample dimension | diameter up to 20 mm, up to 50 mm long and 20 mm wide |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
