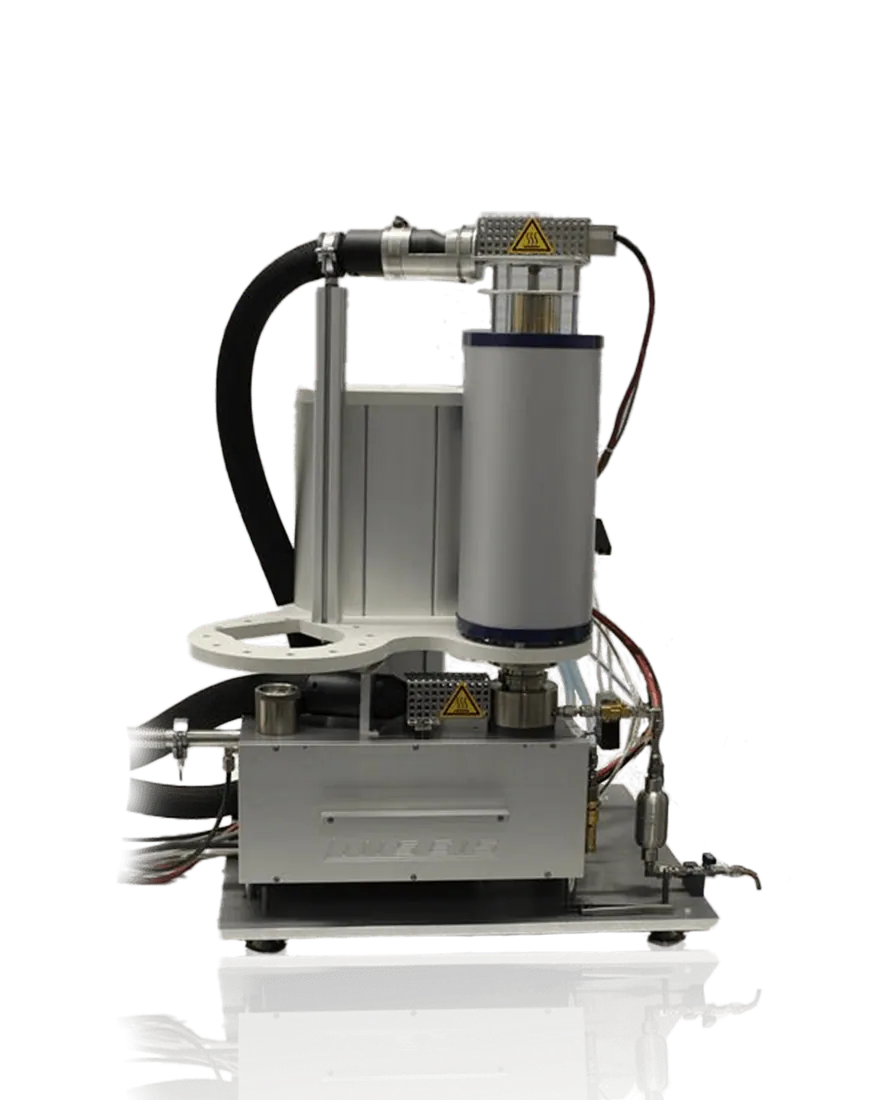

STA L81 Nuclear
Brand: Linseis | Category: Nanotechnology
The STA L81 Nuclear is the version of the STA L81 simultaneous thermal analyser built for nuclear and radioactive samples. It records mass change and heat flow at the same time, giving TG and DSC data from one run. It is used to characterise the thermal behaviour of nuclear materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -150°C up to 500 / 700 / 1000°C, RT up to 1000 / 1400 / 1600 / 1750 / 2000 / 2400°C |
| Heating speed | 0.01 up to 100K/min |
| TG resolution | 0.01 μg / 0.02 μg / 0.1 μg (TG 1 / 2 / 3) |
| Pressure | up to 5 bar (optional) |
| Vacuum | 10E-2 mbar (depending on the vacuum pump) |
| Temperature precision | 0.001°C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
