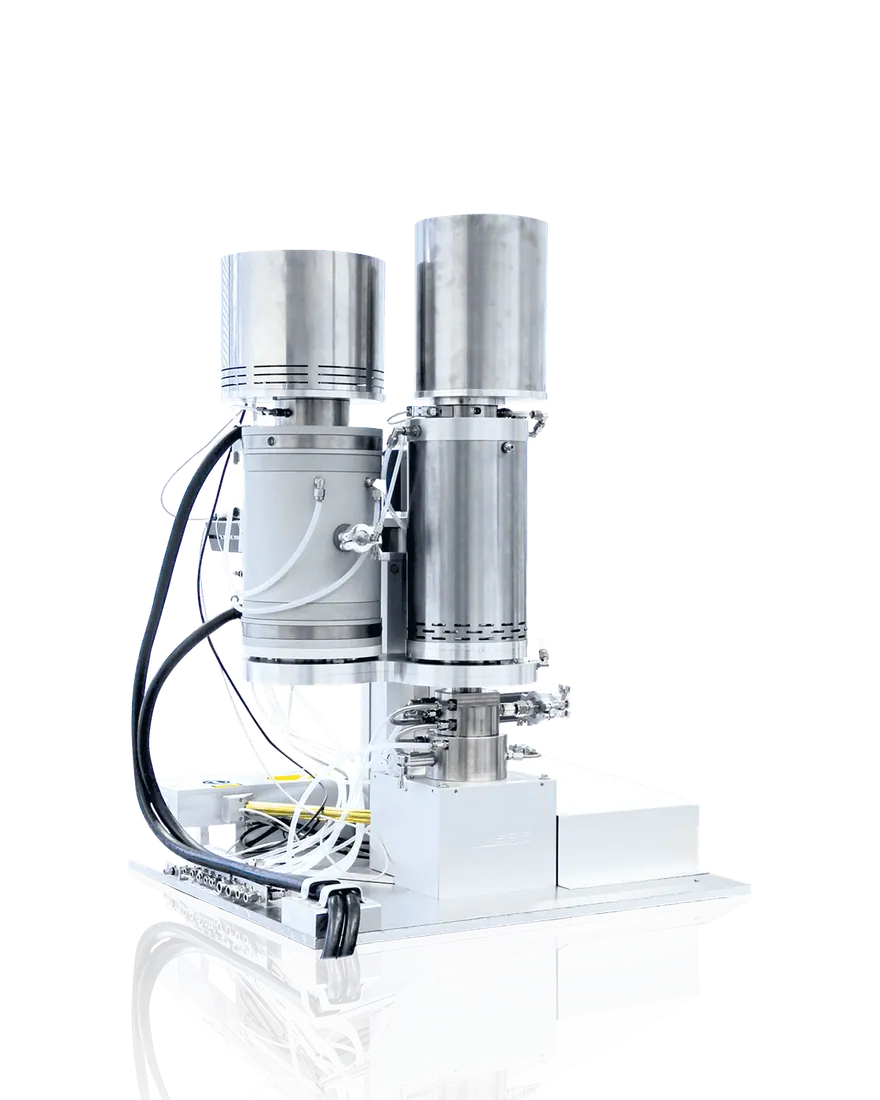

LFA L52 Nuclear
Brand: Linseis | Category: Nanotechnology
The LFA L52 Nuclear is the laser flash instrument built for nuclear and radioactive samples. A laser pulse heats the sample and the resulting temperature rise is followed without contact by an infrared detector. It measures thermal diffusivity and thermal conductivity on nuclear materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -125 °C / -100°C up to 500°C, RT up to 1250°C, RT up to 1600°C |
| Measuring range thermal diffusivity | 0.01 mm2/s up to 2000 mm2/s |
| Measuring range thermal conductivity | 0.1 W/mK up to 3500 W/mK |
| Sample size | diameter 6, 10, 12.7 ... 25.4 mm, square samples 10x10 or 20x20 mm |
| Sample thickness | 0.1 mm ... 6 mm |
| Pulse source | Nd:YAG laser, user replaceable |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
