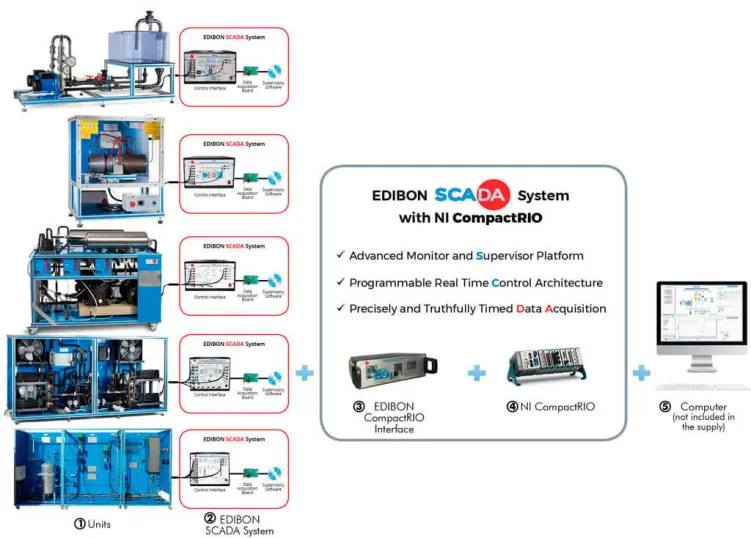

ECR: EDIBON Industrial Modular System with NI CompactRIO
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An expansion that puts an EDIBON teaching unit under a National Instruments CompactRIO platform. It combines a real time controller, a reconfigurable FPGA and industrial input and output modules for high speed acquisition, custom signal processing and embedded data logging.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Composed of a real time controller, a field programmable gate array and industrial I/O modules |
| Specification | Integrated controller and chassis model NI cRIO-9063 |
| Specification | Real time controller executes LabVIEW Real-Time applications |
| Specification | SCADA application provided to control the process and read sensors under a real time operating system |
| Specification | Includes the ELK and ICAI expansion items |
| Specification | EDIBON designs a specific expansion for each unit |
