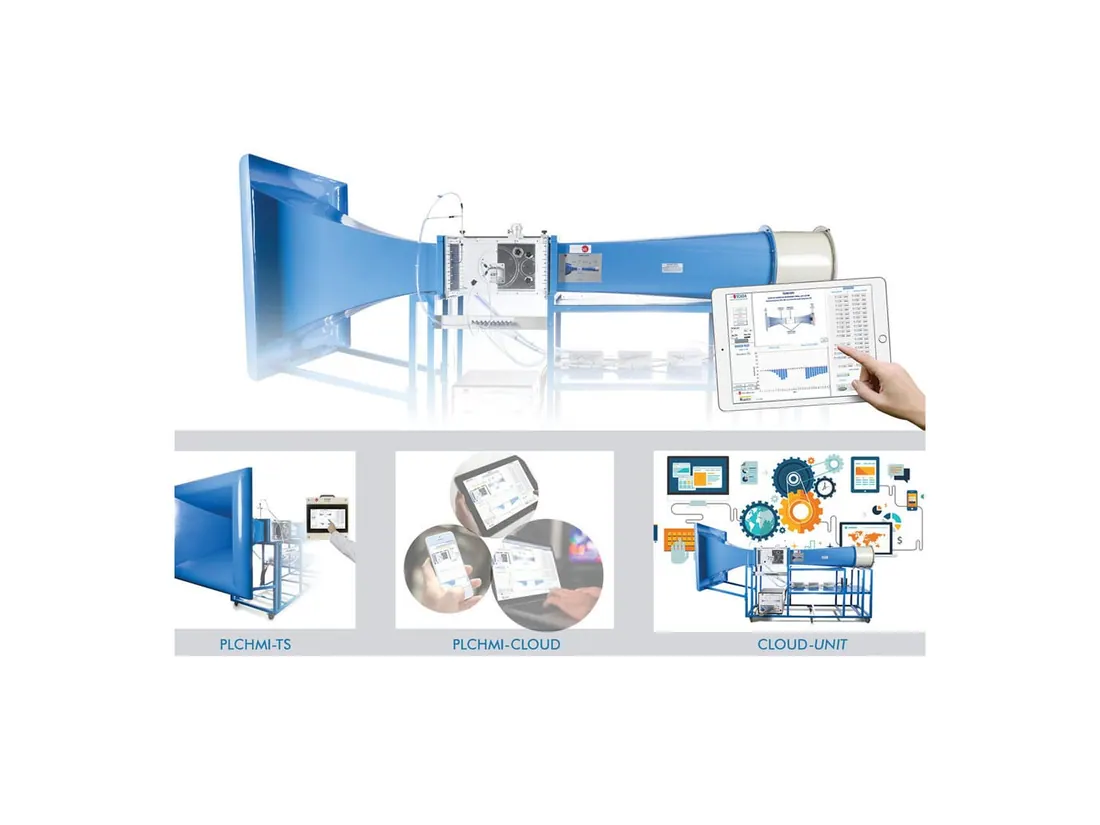

PLCHMI: IIoT local/remote Control and Monitoring with HMI
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An industrial internet of things expansion that adds a PLC interface and an HMI control box to an EDIBON teaching unit. Two Ethernet ports let the PLC talk to the HMI, a computer or a tablet, so a process can be operated locally or remotely.
Technical Specifications
| Parameter | Value |
|---|---|
| PLC controller | Panasonic FP7 CPS31E CPU |
| Digital I/O modules | 16 digital inputs, 0 to 24 V range, and 16 relay digital outputs |
| Analogue I/O modules | 16 analog inputs, 16 bit resolution, range -10 V to +10 V |
| Specification | 4 analog outputs, 16 bit resolution, range -10 V to +10 V |
| HMI control box electrical supply | single phase 100 to 240 VAC with 25 A, 30 mA RCBO |
| Requires at least one touch screen | PLCHMI-TS, PLCHMI-TS15 or PLCHMI-TS21 |
