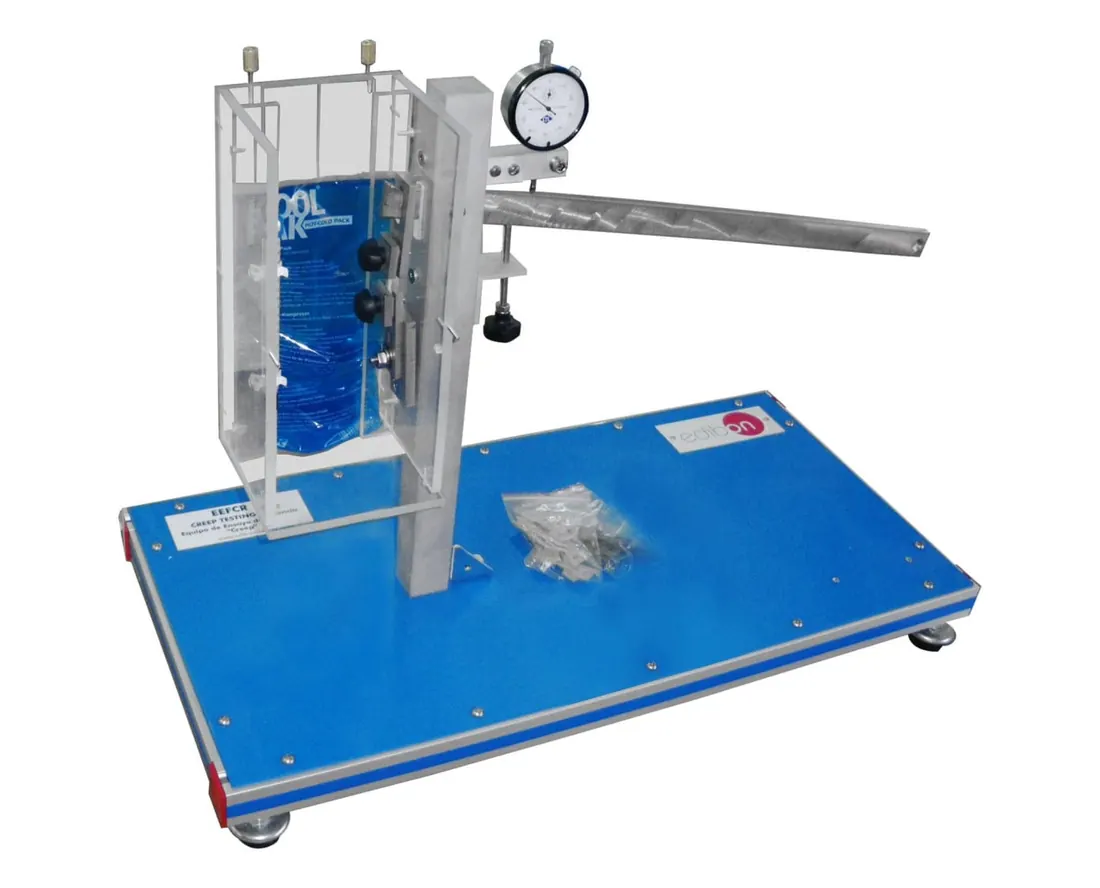

EEFCR: Creep Testing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EEFCR is used to study creep in metals and polymers at room and elevated temperature. A constant load is applied to a specimen and extension is recorded over time, giving the primary, secondary and tertiary stages of the creep curve.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 700 x 350 x 600 mm approx |
| Weight | 25 kg approx |
| Load arm tensile stress range | 0 to 35 N/mm² |
| Dial indicator range | 0 to 10 mm |
| Dial indicator accuracy | 0.01 mm |
