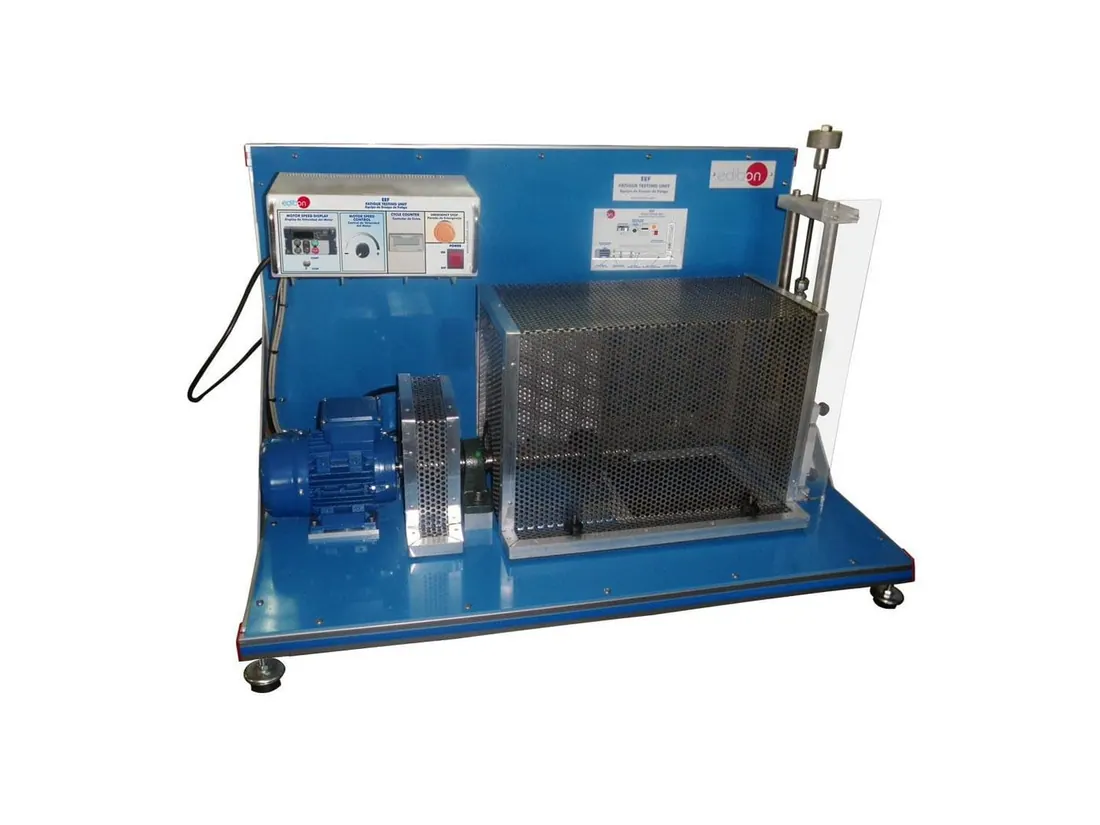

EEF: Fatigue Testing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EEF is a rotating bending fatigue machine. A specimen is loaded as a cantilever and rotated so its surface sees alternating stress, and cycles to failure are counted to build up an S-N curve. A computer controlled version, EEFC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 600 x 600 mm approx |
| Weight | 52 kg approx |
| Electric motor of 0.37 kW, maximum speed | 3000 rpm |
| Specification | Loading device with spring balance (0 to 30 kg) and adjustment using threaded spindle with hand |
| Specification | Test pieces with a diameter of 8 mm and a length of 380 mm |
