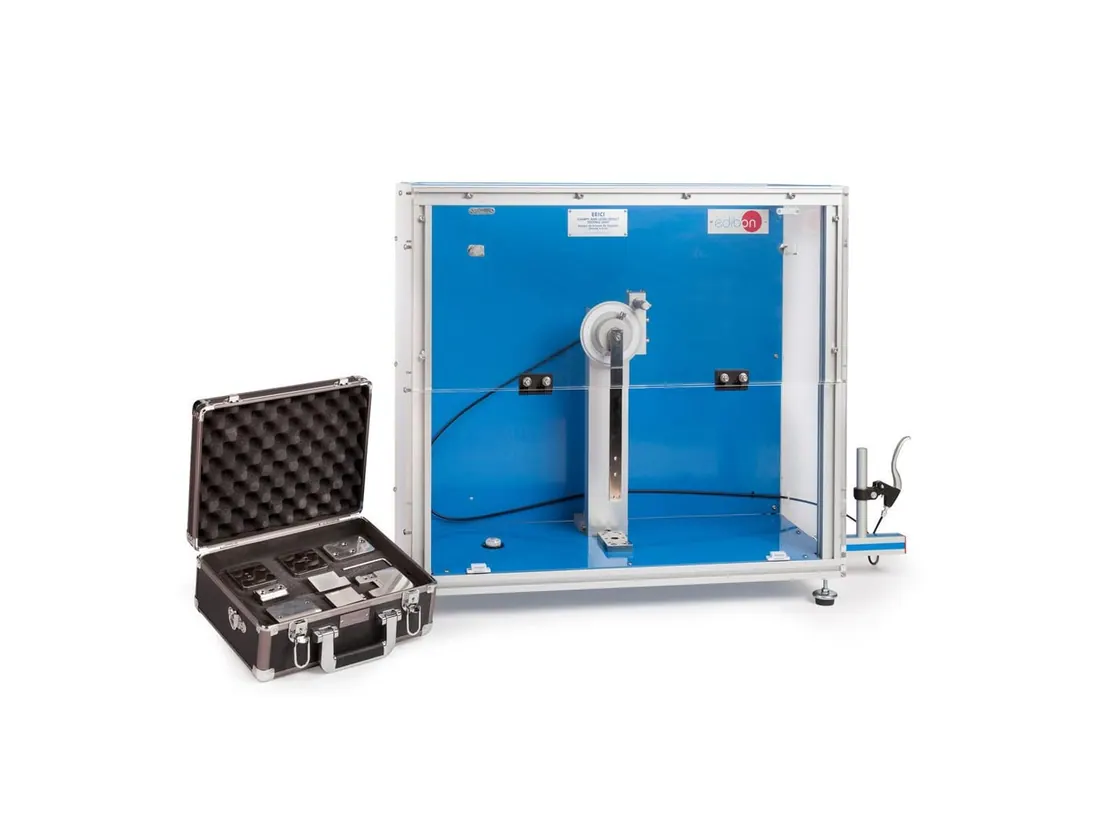

EEICI: Charpy and Izod Impact Test Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EEICI is a pendulum impact tester for Charpy and Izod tests. The pendulum is released from a set height to break a notched specimen and the absorbed energy is read on a scale, so notch shape and temperature effects can be studied. A 300 J version, EEICI/300, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 600 x 600 mm approx |
| Weight | 70 Kg approx |
| Pendulum | It is supported by bearings and has an length of 330 mm |
| Charpy potential energy | 5 J, 7.5 J and 10 J |
| Izod potential energy | 8.5 J |
| Specification | Their dimensions are 80 mm length and its cross section is 10 mm x 4 mm |
