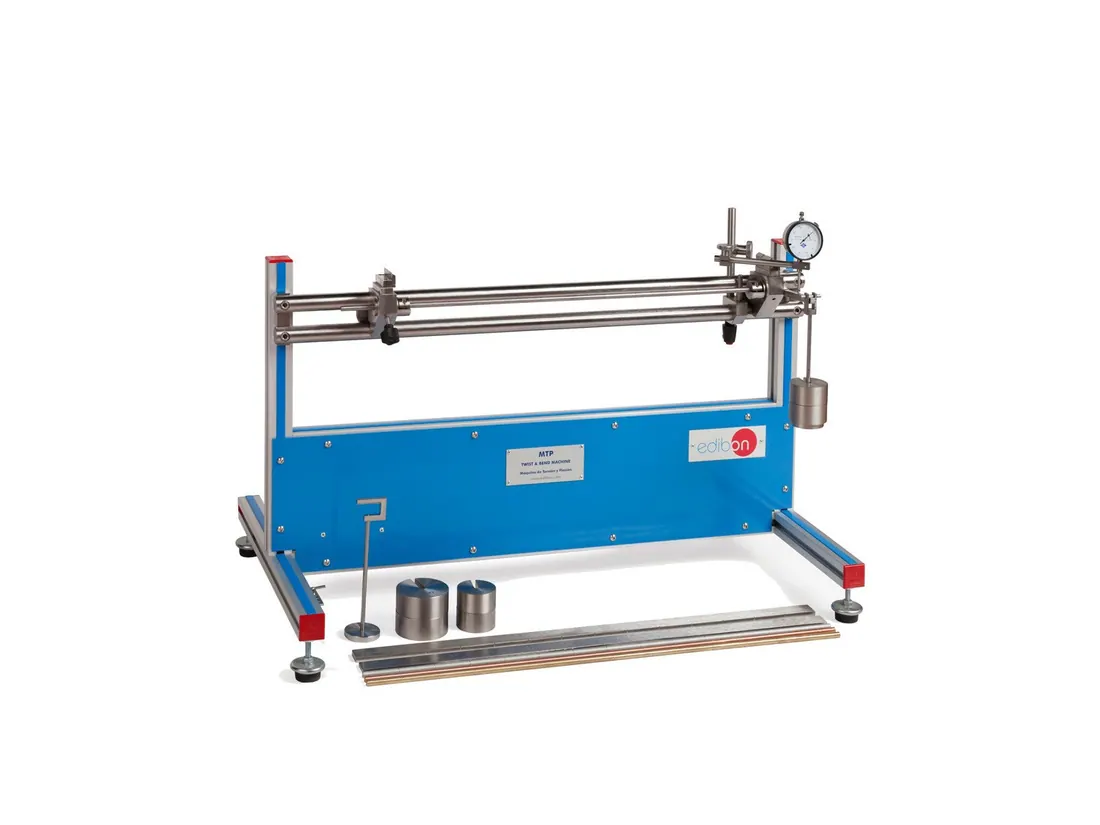

MTP: Torsion and Bend Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MTP allows torsion and bending tests on the same frame. Specimens are twisted or bent by a screw mechanism while torque, angle of twist, load and deflection are measured, giving the modulus of rigidity and the modulus of elasticity.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 850 x 500 x 650 mm approx |
| Weight | 18 Kg approx |
| Specification | Two stainless steel guides of 800 mm, which allow to displace the supports in the whole range |
| Specification | Four test pieces with circular section, of 8 mm diameter, of different materials (steel, aluminum, brass |
| Dial gauge, range | 0 to 10 mm; accuracy: 0.01 mm; for measure the deformations |
| Specification | Allen key of 3 mm to assemble the beams in the supports |
