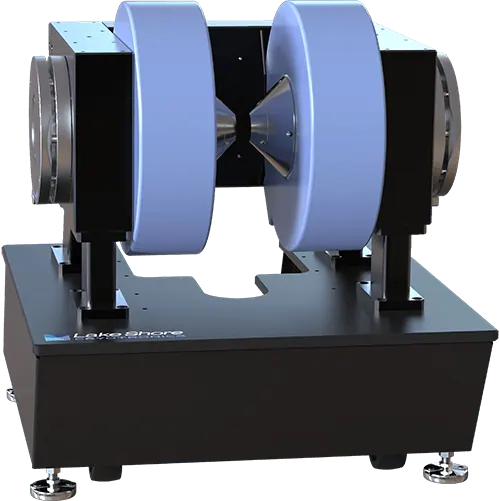

EM-4V and EM-7V Electromagnets
Brand: Lake Shore | Category: Nanotechnology
The EM-4V and EM-7V are laboratory electromagnets with indexed ExactGAP air gap settings and interchangeable pole caps. With the optional high-field 2 in pole face at a 7.5 mm gap they reach 2.76 T and 3.22 T. Field falls as the air gap or the pole face diameter increases.
Technical Specifications
| Parameter | Value |
|---|---|
| ExactGAP settings | Index 1 to Index 6, giving 7.5 mm (0.30 in) to 50 mm (1.97 in) air gaps with 2 in pole faces |
| Optional high-field 2 in pole face, Index 1 (7.5 mm) | 27.6 kOe (2.76 T) EM-4V, 32.2 kOe (3.22 T) EM-7V |
| Standard 2 in pole face, Index 1 (7.5 mm) | 26.1 kOe (2.61 T) EM-4V, 30.5 kOe (3.05 T) EM-7V |
| Standard 2 in pole face, Index 6 (50 mm) | 9.1 kOe (0.91 T) EM-4V, 15.4 kOe (1.54 T) EM-7V |
| Standard 4 in pole face, Index 1 (57.5 mm) | 7.9 kOe (0.79 T) EM-4V, 13.5 kOe (1.35 T) EM-7V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
