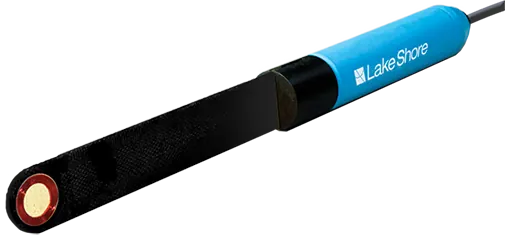

Search Coils
Brand: Lake Shore | Category: Nanotechnology
Lake Shore search coils are handheld coils used with the Model 480 fluxmeter to measure magnetic flux and flux density. They are optimised for magnets fixed in an assembly or mounted in a narrow gap, where a Helmholtz coil cannot be used. Two area-turn options are offered.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | FNT-6R04-100, FNT-5P04-30 |
| Calibration accuracy | 0.25% (FNT-6R04-100), 0.35% (FNT-5P04-30) |
| Area-turns (approx) | 100 cm2 (FNT-6R04-100), 30 cm2 (FNT-5P04-30) |
| Coil resistance (approx) | 6.5 Ω (FNT-6R04-100), 110 Ω (FNT-5P04-30) |
| Average coil diameter | 1.04 cm (FNT-6R04-100), 0.39 cm (FNT-5P04-30) |
| Operating temperature range | 0 °C to 60 °C |
