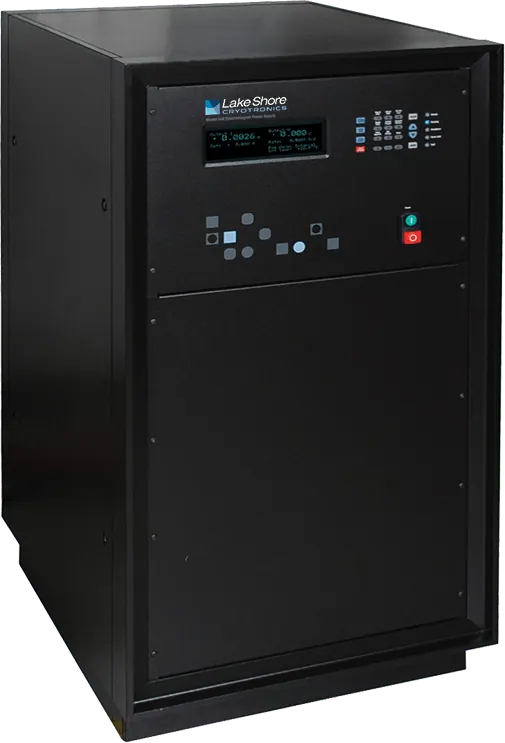

Model 648 Electromagnet Power Supply
Brand: Lake Shore | Category: Nanotechnology
The Model 648 is a 9 kW bipolar, 4-quadrant DC current source for large research electromagnets. It delivers up to +/-135 A at +/-75 V into a nominal 0.5 ohm, 0.5 H load, with 10 mA RMS current ripple. Protection covers short circuit, line faults and over temperature.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Bipolar, 4-quadrant, DC current source |
| Current range | +/-135 A |
| Compliance voltage (DC) | +/-75 V |
| Power | 9.1 kW nominal |
| Nominal load | 0.5 Ω, 0.5 H |
| Current ripple | 10 mA RMS (0.007%) at 135 A into nominal load |
