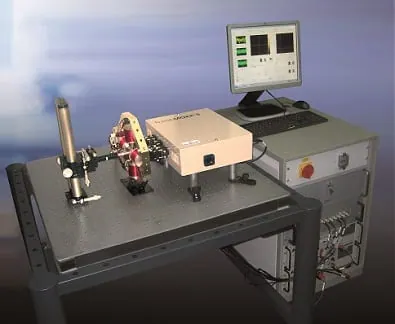

NanoMOKE3
Brand: Durham Magneto Optics | Category: Nanotechnology
A magneto-optical Kerr effect magnetometer for magnetic thin films, nanostructures, tunnel junctions and spintronic devices. A focused laser spot and video rate scanning laser microscope allow precise positioning on the sample and sensitive domain imaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Applied field | 0.27 T in x and y, 0.5 T in x or 1.2 T in x available as an option |
| Specification | Sensitive to longitudinal, transverse and polar Kerr rotation and ellipticity |
| Optional cryostat | 3.3 K to 350 K helium free, or 4.2 K to 500 K |
| Specification | Video rate scanning laser microscope for domain imaging |
| Specification | Integrated low noise CCD camera for domain imaging |
| Specification | Supplied with LX Pro control software |
