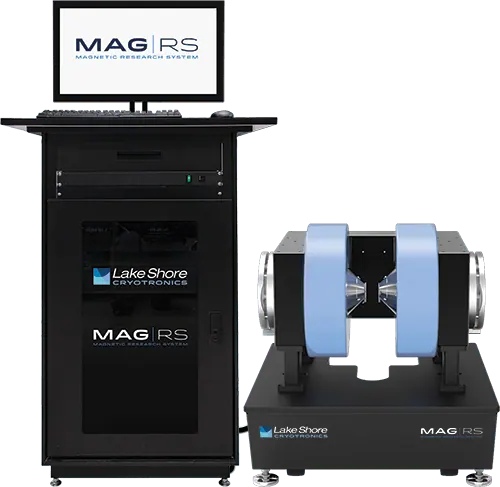

MagRS Magnetic Research System
Brand: Lake Shore | Category: Nanotechnology
MagRS is a customisable electromagnet platform for material characterisation, with measurement options including VSM, Hall effect and FMR. The 4 in magnet reaches 2.61 T and the 7 in magnet 3.05 T at the smallest indexed air gap. Temperature options run from 10 K to 1273 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum field at Index 1 (7.5 mm air gap) | 2.61 T with the 4 in magnet, 3.05 T with the 7 in magnet |
| Temperature options | standard room temperature; low temp 10 K to 350 K (optical CCR) or 400 K (CCR); high temp room temperature to 1273 K (oven) |
| Sample type | van der Pauw, Hall bar |
| Maximum sample size | 10 mm x 10 mm x 3 mm |
| Resistance range (ACField option) | standard 0.5 mΩ to 10 MΩ, high-resistance 10 MΩ to 200 GΩ |
| Gate bias option | Up to 100 V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
