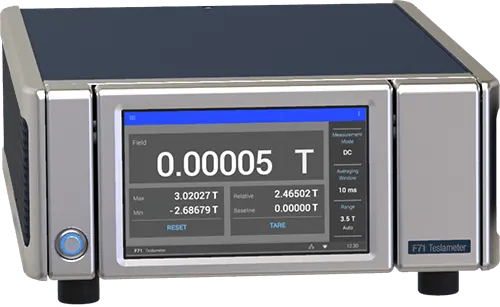

F71 and F41 Teslameters
Brand: Lake Shore | Category: Nanotechnology
The F71 and F41 teslameters measure DC and AC magnetic fields, the F41 on a single axis and the F71 on three axes with vector magnitude. Both accept Lake Shore probes and plug-and-play sensors. They are used for magnet mapping, field verification and quality control.
Technical Specifications
| Parameter | Value |
|---|---|
| Autorange | 35 mT (350 G), 350 mT (3.5 kG), 3.5 T (35 kG), 35 T (350 kG) |
| Number of measurement inputs | F41 single-axis 1, F71 multi-axis 3 |
| Number of physical connectors | 1 |
| Connector type | 26-pin mini D-sub |
| AC mode frequency range | DC to 550 Hz |
| High-frequency mode | 1.7 Hz to 75 kHz |
