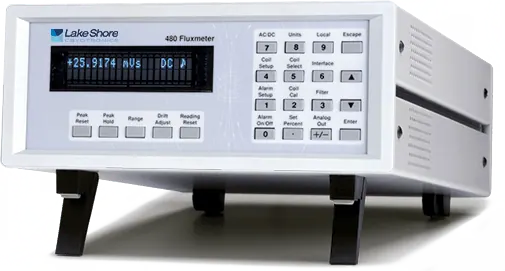

Model 480 Fluxmeter
Brand: Lake Shore | Category: Nanotechnology
The Model 480 fluxmeter measures total magnetic flux, which can then be used to calculate flux density (B) and magnetic field strength (H). It is used with Helmholtz coils and search coils to characterise permanent magnets and magnet assemblies.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measurement inputs | 1, two-lead ground-referenced |
| Input-resistance options | 100 kΩ or 10 kΩ |
| Maximum operating input voltage | 60 V |
| Display update rate | 5 readings/s |
| AC frequency response | 2 Hz–50 kHz |
| Ambient temperature at rated accuracy | 15–35 °C |
| Dimensions | 216 × 89 × 318 mm (W × H × D) |
| Weight | 3 kg |
Selected Model 480 manufacturer data. DC, DC-peak, AC and AC-peak modes have different ranges and uncertainties. Confirm the selected mode, coil calibration and complete operating limits. Checked 2026-09-29.
