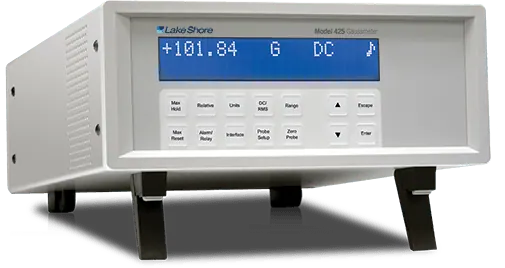

Model 425 Gaussmeter
Brand: Lake Shore | Category: Nanotechnology
The Model 425 is a desktop gaussmeter that measures DC and AC magnetic fields using Lake Shore Hall probes. It reads at 4-3/4 digit resolution with the filter on, and covers ranges up to 350 kG depending on the probe fitted. It is used for magnet testing and field mapping.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 4-3/4 digit with filter on, 3-3/4 digit with filter off |
| HST probe ranges | 350 kG, 35 kG, 3.5 kG, 350 G |
| HSE probe ranges | 350 G, 35 G |
| AC accuracy, narrow-band mode | +/-2% of reading, +/-0.05% of range (20 Hz to 100 Hz); +/-2.5% of reading, +/-0.05% of range (10 Hz to 400 Hz) |
| AC accuracy, wide-band mode | +/-2% of reading, +/-0.05% of range (50 Hz to 10 kHz) |
