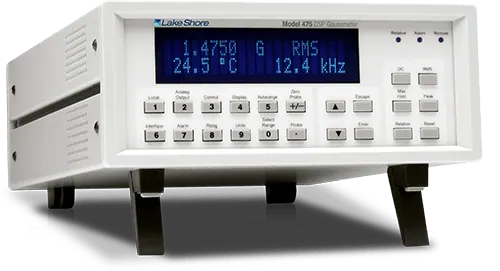

Model 475 DSP Gaussmeter
Brand: Lake Shore | Category: Nanotechnology
The Model 475 DSP gaussmeter uses digital signal processing to measure DC and AC magnetic fields with Hall probes. Resolution is selectable at 5-3/4, 4-3/4 or 3-3/4 digits, trading reading rate against bandwidth. It is used for precise field measurement and magnet characterisation.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 5-3/4 digit, 4-3/4 digit or 3-3/4 digit |
| HST probe ranges | 350 kG, 35 kG, 3.5 kG, 350 G, 35 G |
| HSE probe ranges | 350 G, 35 G, 3.5 G |
| 3 dB bandwidth | 1 Hz (5-3/4 digit), 10 Hz (4-3/4 digit), 100 Hz (3-3/4 digit) |
| Time constant | 1 s (5-3/4 digit), 0.1 s (4-3/4 digit), 0.01 s (3-3/4 digit) |
| Maximum reading rate | 10 rdg/s (5-3/4 digit), 30 rdg/s (4-3/4 digit), 100 to 1000 rdg/s (3-3/4 digit) |
