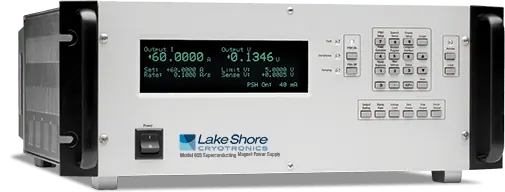

Model 625 Superconducting Magnet Power Supply
Brand: Lake Shore | Category: Nanotechnology
The Model 625 is a bipolar, 4-quadrant current source for small to medium superconducting magnets used in materials research. It supplies up to +/-60 A at +/-5 V with 0.1 mA setting resolution and quench protection. Two units can be paralleled for +/-120 A operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Bipolar, 4-quadrant, DC current source |
| Current range | +/-60 A |
| Compliance voltage | +/-5 V maximum (nominal, both source and sink) |
| Maximum power | 300 W |
| Resolution | 0.1 mA (20-bit) |
| Parallel operation | 2 units can be paralleled for +/-120 A, +/-5 V operation |
