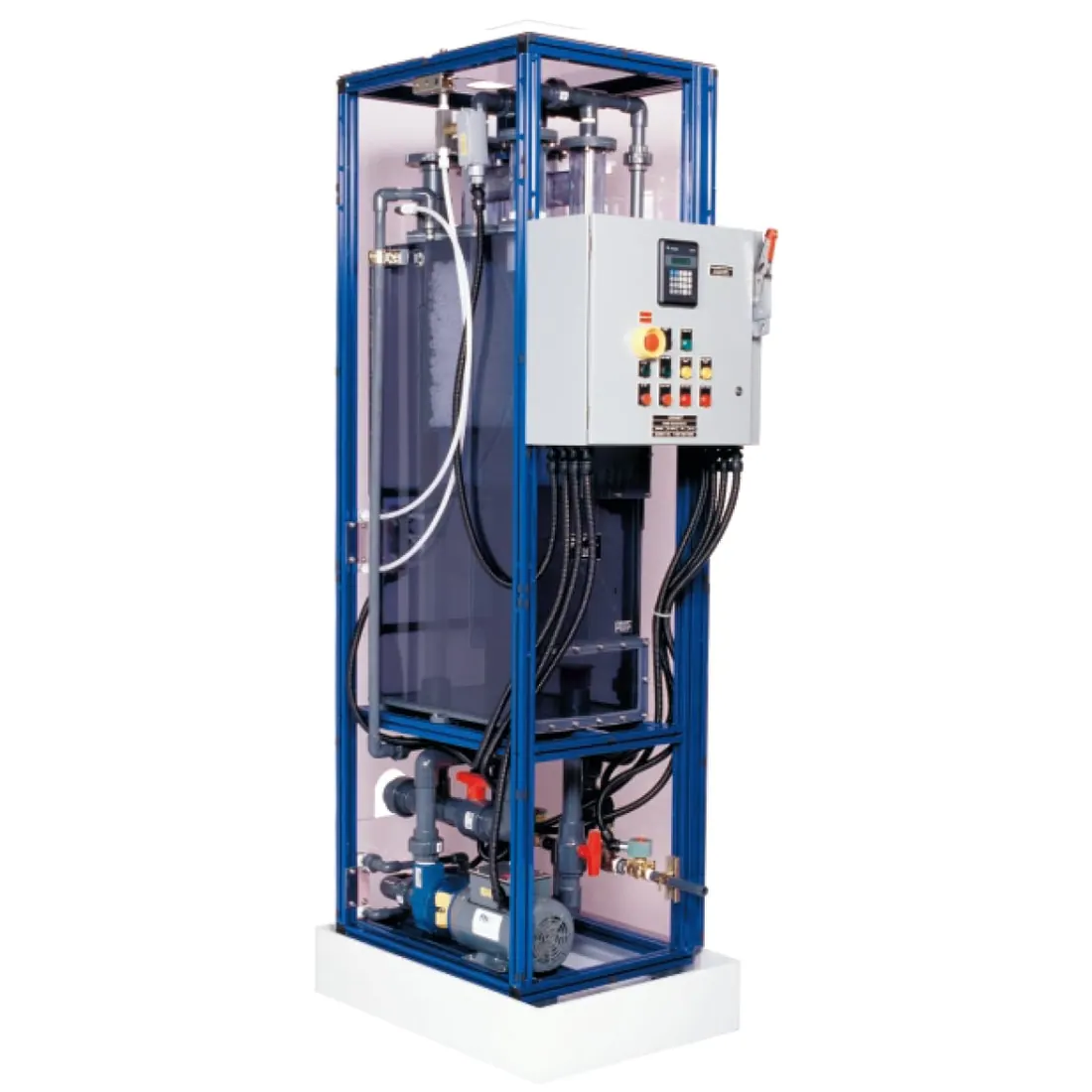

ENVIRO-MATRIX Sentinel
Brand: Semian | Category: Scientific & Laboratory Equipment
Point of use wet scrubber range for semiconductor reactor effluent containing corrosive, toxic or reactive gases. It handles solids generating gases such as WF6, BCl3 and DCS, and is normally installed in the sub fab or cleanroom chase.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Removal efficiencies greater than 99% on SiF4, DCS, WF6, HF, HCl and NH3 |
| Specification | N2 shielded inlet prevents water backstreaming to the vacuum pump |
| Specification | Multiple chamber design hydrolyses gases and removes particulates |
| Specification | Integral 50 gallon sump with venturi induced gas flow |
| Specification | Zero pressure drop, solid clear PVC construction |
| Specification | SEMI S2 certified |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Semian equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
