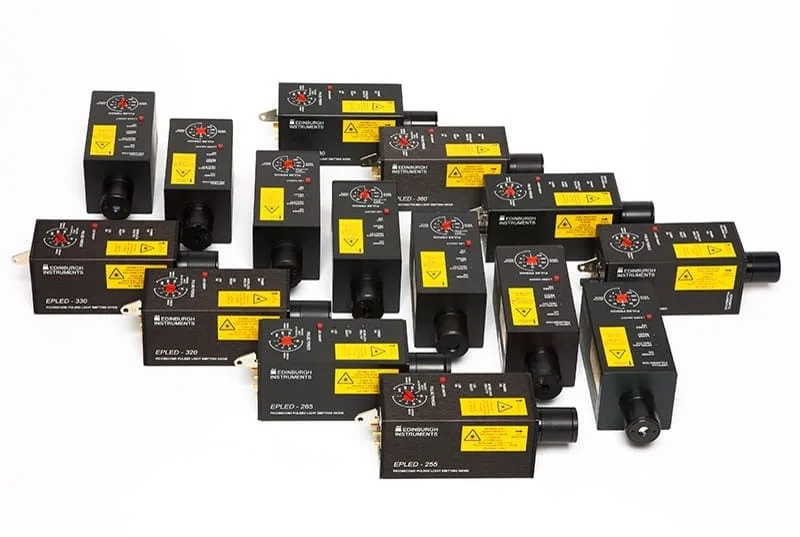

EPL Series: Picosecond Pulsed Diode Lasers
Brand: Edinburgh Instruments | Category: Nanotechnology
Picosecond pulsed diode lasers built for time-correlated single photon counting, supplied at fixed wavelengths from 375 nm to 980 nm. Each head includes a built-in spectral filter so no external filtering is needed, and the repetition rate is selectable from 2.5 kHz to 20 MHz. They plug directly into Edinburgh Instruments spectrometers.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model (EPL-) | Nominal Wavelength (nm) | Max. Pulse Width @ 10 MHz (ps) | Typical Average Power @ 20 MHz (mW) |
|---|---|---|---|
| 375 | 375 | 85 | 0.15 |
| 405 | 405 | 75 | 0.11 |
| 445 | 445 | 95 | 0.15 |
| 450 | 450 | 120 | 0.18 |
| 475 | 475 | 90 | 0.15 |
| 485 | 485 | 120 | 0.10 |
| 510 | 510 | 150 | 0.13 |
| 635 | 635 | 85 | 0.07 |
| 655 | 655 | 85 | 0.15 |
| 670 | 670 | 80 | 0.15 |
| 785 | 785 | 85 | 0.12 |
| 800 | 800 | 110 | 0.15 |
| 980 | 975 | 80 | 0.14 |
Manufacturer catalogue checked 2026-09-29.
Each row identifies a separate wavelength model. Typical, maximum and minimum values and the stated repetition-rate conditions are retained in the column headings. Select the exact wavelength, optical output and trigger configuration against the complete current datasheet.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
