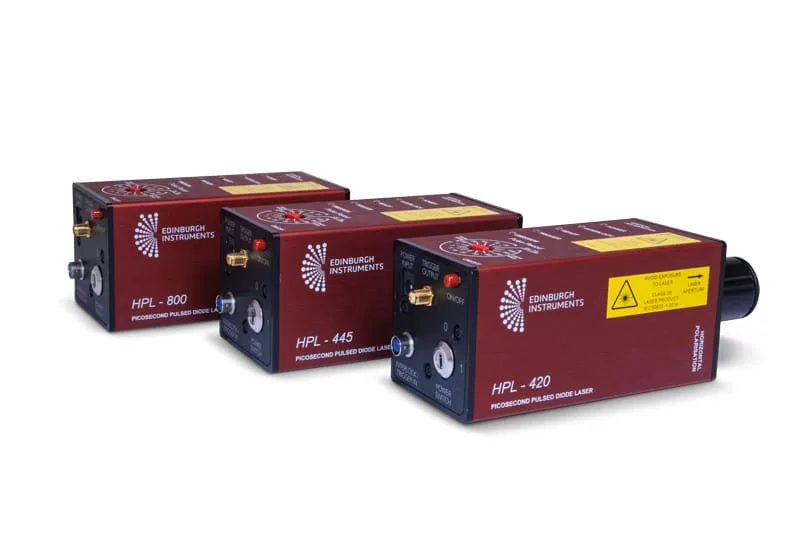

HPL Series: High Repetition Rate and High Power Pulsed Lasers
Brand: Edinburgh Instruments | Category: Nanotechnology
Picosecond pulsed diode lasers offering higher repetition rate and higher average power than the EPL series, up to 80 MHz. The extra photon flux shortens acquisition on weakly emitting samples, and a high average power option is available on each wavelength.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model (HPL-) | Nominal Wavelength (± 10 nm) | Maximum Repetition Rate (MHz) |
|---|---|---|
| 405 | 405 | 80 |
| 420 | 420 | 80 |
| 445 | 445 | 80 |
| 450 | 450 | 80 |
| 475 | 475 | 80 |
| 485 | 485 | 80 |
| 510 | 510 | 80 |
| 635 | 635 | 80 |
| 655 | 655 | 80 |
| 670 | 670 | 80 |
| 785 | 785 | 80 |
| 800 | 800 | 80 |
Manufacturer catalogue checked 2026-09-29.
Each row identifies a separate wavelength model. Typical, maximum and minimum values and the stated repetition-rate conditions are retained in the column headings. Select the exact wavelength, optical output and trigger configuration against the complete current datasheet.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Laser Systems
- VPL Series: Variable Pulse Width Pulsed Lasers
Pulsed diode lasers whose pulse width is selectable from below 70 nanoseconds up to 1 millisecond, for phosphorescence and long lifetime measurements where a picosecond pulse carries too little energy. They also run continuous wave, and pulse width can be defined by an external trigger.
- EPLED Series: Picosecond Pulsed LEDs
Pulsed LED sources reaching into the deep ultraviolet from 250 nm, where diode lasers are not available, with sub-nanosecond pulse widths for lifetime measurement. The series runs from 250 nm to 610 nm and shares the housing, trigger interface and mounting of the EPL diode lasers.
- VPLED Series: Variable Pulse Width Pulsed LEDs
Variable pulse width LED sources covering 255 nm to 1300 nm, a wider span than the diode laser series and reaching further into both the ultraviolet and the near infrared. They are used for phosphorescence and multi channel scaling measurements where a long excitation pulse is needed.
