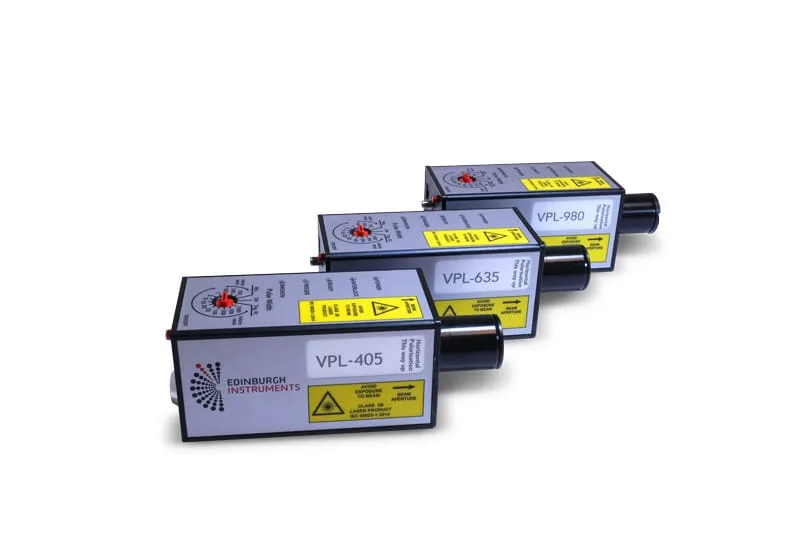

VPL Series: Variable Pulse Width Pulsed Lasers
Brand: Edinburgh Instruments | Category: Nanotechnology
Pulsed diode lasers whose pulse width is selectable from below 70 nanoseconds up to 1 millisecond, for phosphorescence and long lifetime measurements where a picosecond pulse carries too little energy. They also run continuous wave, and pulse width can be defined by an external trigger.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model (VPL-) | Nominal Wavelength (± 10 nm) | Typical CW Average Power (mW) | Minimum CW Average Power (mW) |
|---|---|---|---|
| 375 | 375 | 20 | 20 |
| 405 | 405 | 25 | 10 |
| 420 | 420 | 55 | 30 |
| 445 | 445 | 15 | 10 |
| 450 | 450 | 30 | 20 |
| 475 | 475 | 25 | 10 |
| 485 | 485 | 30 | 25 |
| 510 | 510 | 15 | 10 |
| 635 | 635 | 35 | 25 |
| 640 | 640 | 35 | 15 |
| 655 | 655 | 15 | 10 |
| 670 | 670 | 10 | 8 |
| 700 | 700 | 15 | 15 |
| 730 | 730 | 15 | 15 |
| 785 | 785 | 35 | 25 |
| 800 | 800 | 40 | 10 |
| 980 | 980 | 10 | 10 |
Manufacturer catalogue checked 2026-09-29.
Each row identifies a separate wavelength model. Typical, maximum and minimum values and the stated repetition-rate conditions are retained in the column headings. Select the exact wavelength, optical output and trigger configuration against the complete current datasheet.
