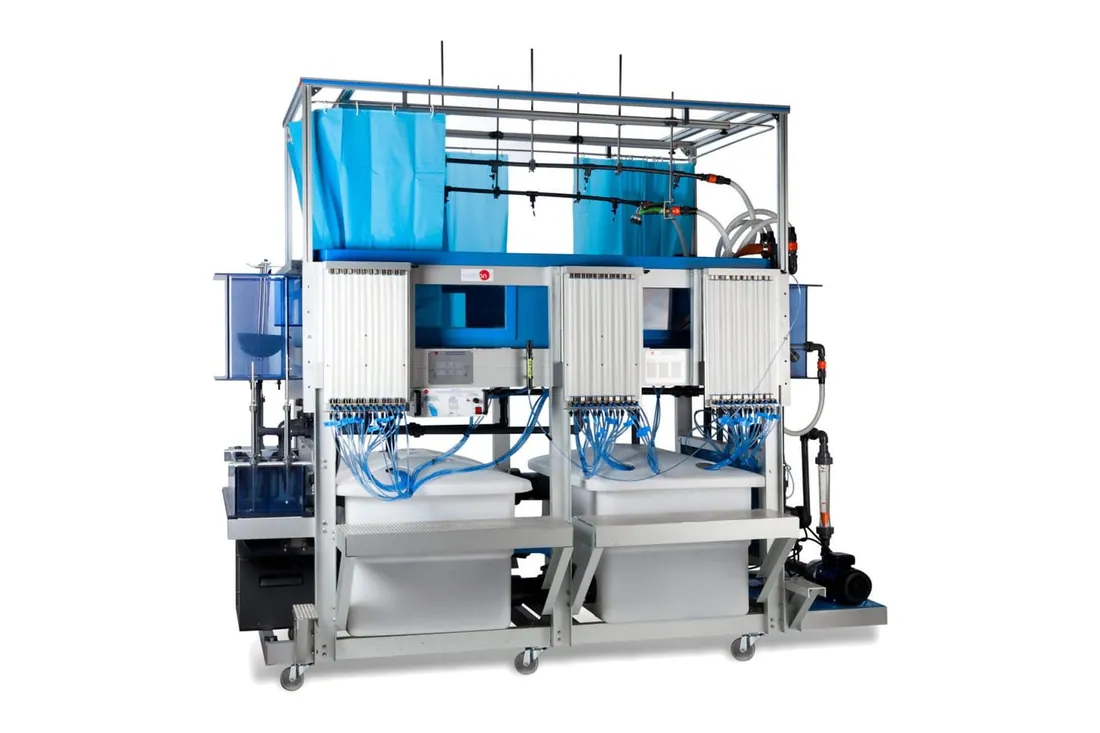

ESH(2x1m): Hydrologic Systems, Rain Simulator and Irrigation Systems Unit (2x1 m)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
ESH(2x1m) is a 2 x 1 m tank with a rainfall simulator for catchment studies. Rainfall intensity, ground slope and drainage arrangements are varied so runoff, infiltration and irrigation schemes can be modelled. Computer controlled versions and a 4 x 2 m size are also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 2700 x 1500 x 2000 mm approx |
| Weight | 950 kg approx |
| Dimensions | 2 m long, 1 m wide and 0.40 m deep |
| Six orifice plates that, together with a panel of manometric tubes and a flow meter (range | 600 to 6000 l/h), allow to determine the flow |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
