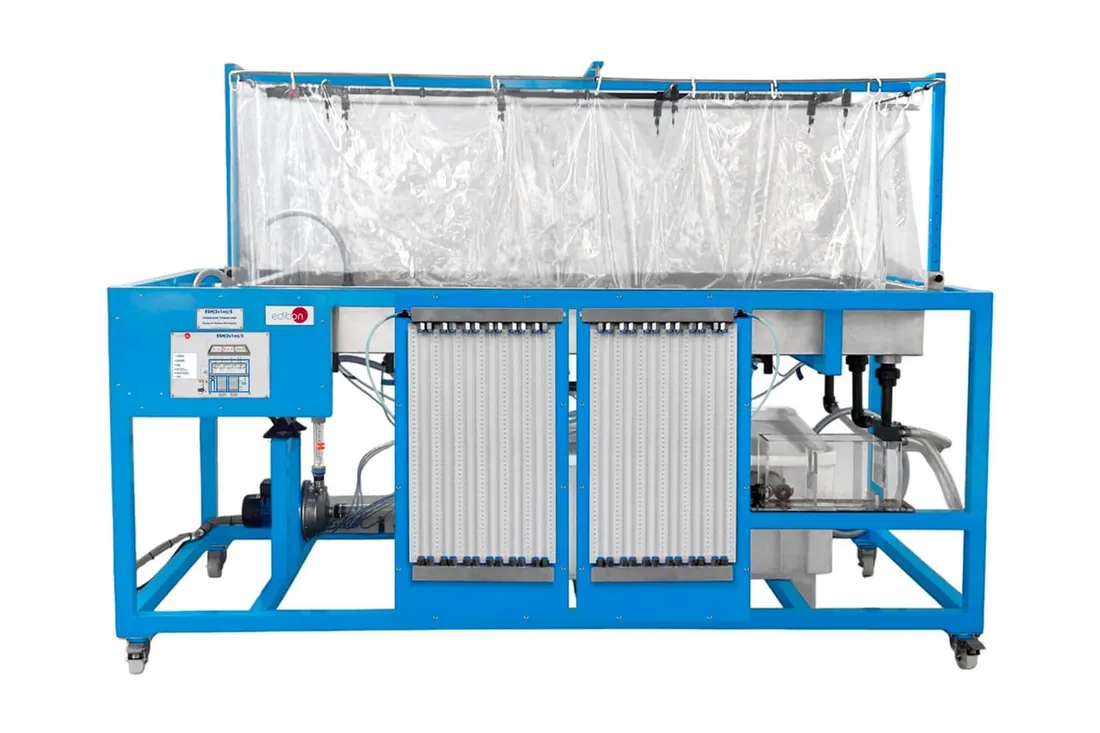

ESH(2x1m)/S: Hydrologic Studies Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
ESH(2x1m)/S is a reduced version of the hydrologic systems tank aimed at surface and groundwater studies. Rainfall is applied over an adjustable bed so runoff hydrographs, infiltration and well drawdown can be measured. A computer controlled version is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 2700 x 2500 mm approx |
| Weight | 950 Kg approx |
| Stainless steel test tank area | 2 x 1 m² |
| Stainless steel test tank depth | 0.2 m |
| Stainless steel test tank sand capacity | 0.3 m³ |
| Adjustable speed pump power | 0.55 kW |
