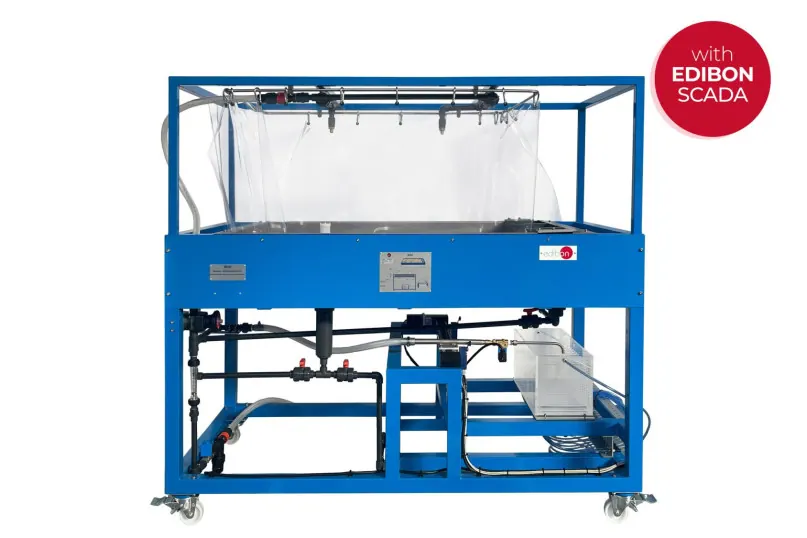

RHU: Rainfall Hydrographs Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
RHU is used to generate and measure rainfall runoff hydrographs. Rain of controlled intensity falls on a sloping catchment bed and the outflow is recorded over time, so the rising limb, the peak and the recession of the hydrograph can be studied.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 1000 x 1000 mm approx |
| Weight | 180 Kg approx |
| Tank. Dimensions | 1200 x 820 x 210 mm |
| Flowmeter, range | 0.5 to 5 l/min |
| Specification | Vessel divided internally into seventeen storage compartments of 0.9 l each |
