Brand: Denton Vacuum | Category: Nanotechnology

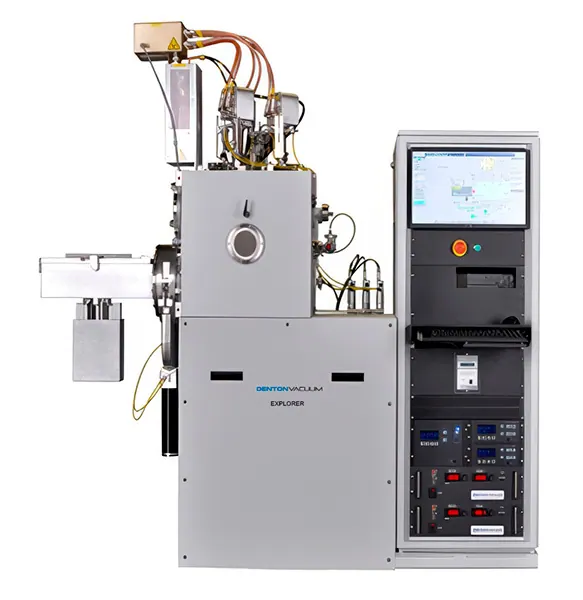

A floor mounted high vacuum platform for research and pilot production that can be configured for electron beam evaporation, resistance evaporation or magnetron sputtering. Ion assisted deposition is available as an option in all three configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | up to 8 inches |
| Sputtering | DC, pulsed DC and RF with co-sputtering capability |
| Specification | Optional PEM technology for closed loop transition mode reactive sputtering |
| Pumping options | diffusion, cryogenic and turbo, in rear or bottom placement |
| Control | semi-manual mode, upgradeable to full automation with ProcessPro |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Thin Film Deposition
- Discovery Isoflux
A sputtering system built around Denton's patented inverted cylindrical magnetron cathode. The substrate sits inside the cylinder and is coated from all directions at once, which gives even coverage on curved and three dimensional parts without planetary rotation.
- Integrity
A production evaporation system that runs both thermal and electron beam sources, configured for semiconductor, compound semiconductor and optical coating work. A temperature management system feeds a fluid cooled substrate stage, which supports small grain and textured films.
- Discovery V
A planar cathode magnetron sputtering module designed to run on the Versa cluster platform. The cathode sits directly above the substrate, which gives tight uniformity in film thickness, sheet resistance and refractive index across one side of the wafer.
