FilmQA Pro software v8 with Gafchromic in-vivo dosimetry system
Brand: Ashland | Category: Medical Equipment

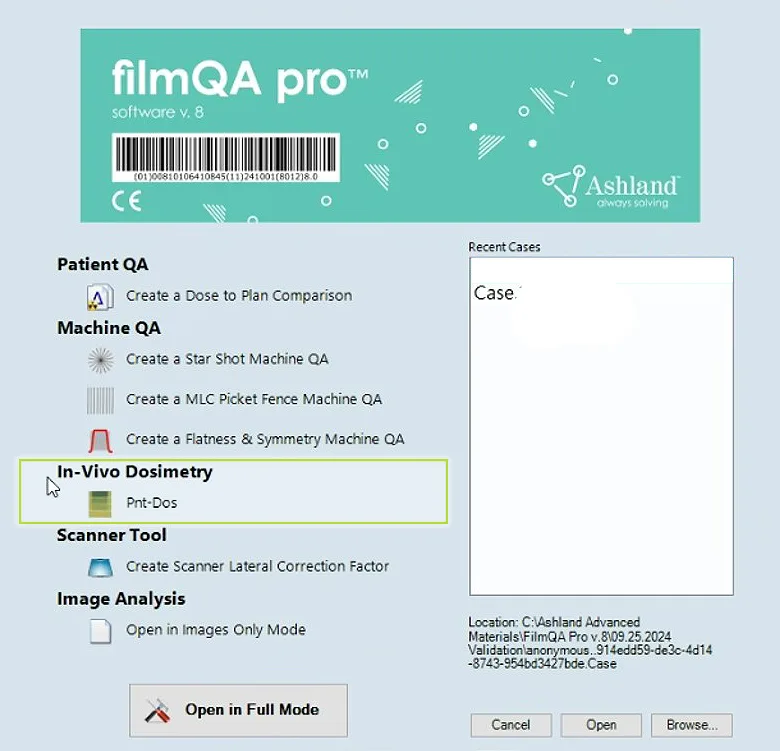

Version 8 of filmQA pro adds a Point dosimetry module that works with the gafchromic pnt-dos device to give medical radiation professionals accurate point dosimetry across radiotherapy and diagnostic radiology, verifying the radiation as a secondary check on the primary dose calculation for quality control. Each pnt-dos device arrives individually packaged in a UVC-protected bag so environmental conditions do not affect it before or after irradiation, and its 2-D barcode is read automatically so device details drop into the analysis report without typing. A custom jig holder on the supplied flatbed scanner positions devices correctly, minimising artefacts and inconsistency, and a new auto-calibration feature allows the treatment plan film to be measured in as early as 15 minutes. The films are passive, needing no external power or cables, which keeps electronic interference out of sensitive treatment environments.
Manufacturer-listed system configuration
| Parameter | Value |
|---|---|
| Software version | FilmQA Pro v8 |
| Measurement device | Gafchromic PNT-DOS |
| Module | Point dosimetry analysis |
| Identification | QR-code reading for device and lot information |
| Required workflow hardware | Compatible scanner and calibration jig |
Ashland’s v8 page and 1 July 2026 lifecycle notice. Confirm the licensed point-dose module, scanner and device variants. The system provides secondary dose verification and does not replace primary treatment planning. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Imaging modality or beam, energy range and intended QA test
- Phantom/dosimeter geometry, detector/readout compatibility and calibration needs
- Required test inserts, analysis software, certificates and acceptance criteria
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Ashland equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Radiotherapy Dosimetry & QA
- Gafchromic custom cuts
Ashland describes custom cuts as a service: any Gafchromic film can be cut to the size, shape and specification a department needs, arriving ready for use straight out of the box. Six cuts are currently published with their own product codes, spanning EBT3, MD-V3 and LD-V1 grades in both imperial and metric sizes. Sizes outside the published list are cut to order on request.
- Gafchromic pnt-dos device
The pnt-dos device is the film element of the Gafchromic in-vivo dosimetry system: it is irradiated during the procedure and then read through the in-vivo dosimetry module of filmQA pro v8, letting dosimetry professionals verify that the dose was delivered as intended per device specifications. Under one inch long, half an inch wide and film thin, it reaches dose points in awkward places such as skin folds and sensitive areas around anatomy, and a light adhesive layer lets staff apply it to sloped surfaces once the plastic liner is peeled away, avoiding tape that can irritate skin. It is engineered to verify radiation doses in the low range below 80 cGy and the high range from 80 to 400 cGy. Every device carries a QR code holding serial number, expiration date and lot number, which is checked and recorded at each optical scan, and packages contain fifty measurement devices with three reference devices.
- Rad-Sure blood irradiation indicators
Transfusion-associated graft-versus-host disease (TA-GvHD) is a rare but usually fatal complication of blood transfusion, and irradiating blood products before transfusion prevents it. Rad-sure indicators are an FDA 510(k) cleared medical device giving positive visual verification that irradiation reached the minimum specified dose: before irradiation the word NOT is visible and the indicator reads NOT Irradiated, and afterwards the word NOT is obscured so the indicator reads IRRADIATED. They are made from gafchromic film, which Ashland calls the world's highest resolution dosimeter, and work with both gamma and x-ray sources. Ashland describes them as the standard for blood irradiation indicators for 25+ years.
