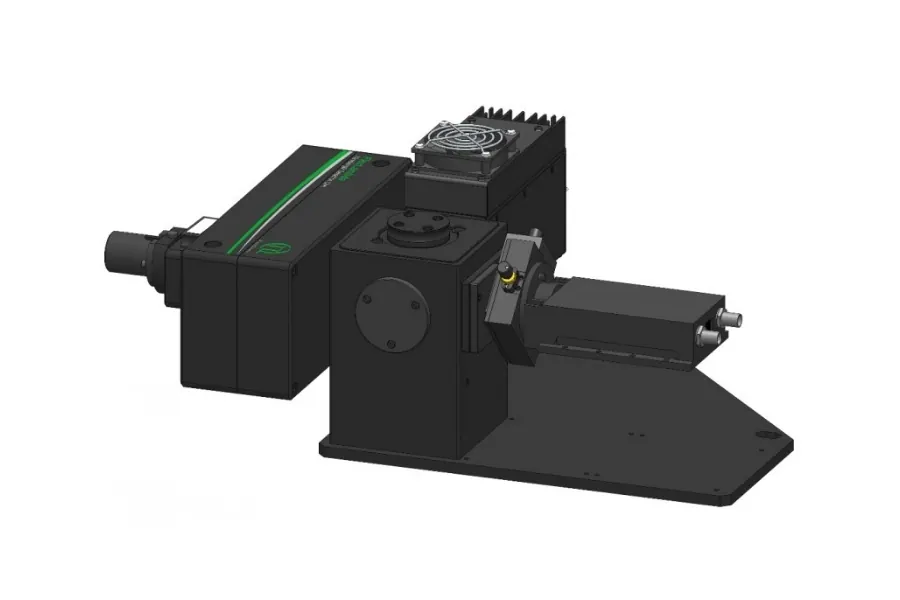

FlexLambda Kit
Brand: PicoQuant | Category: Nanotechnology
The FlexLambda Kit is a compact wavelength selection unit for time-resolved photoluminescence measurements. It selects wavelengths quickly and with high photon efficiency, without the need to change optical components. It fits into existing time-resolved measurement workflows, including the Solira microscope.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Spectral range | 400–1000 nm |
| Transmission | Greater than 80% over the specified spectral range |
| Spectral resolution (FWHM) | Less than 5.0 nm |
| Selectable bandwidth | 1–100 nm |
| Minimum step width | 0.1 nm |
| Entrance coupling | FC/APC |
| Dimensions (W × D × H) | 245 × 85 × 105 mm |
| Weight | 3.5 kg |
| Software / connection | SymPhoTime 64; USB 2.0 |
PicoQuant FlexLambda Kit datasheet, March 2026, page 2. Detector, TCSPC electronics and software configuration must be selected together; older FlexLambda unit specifications differ. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
