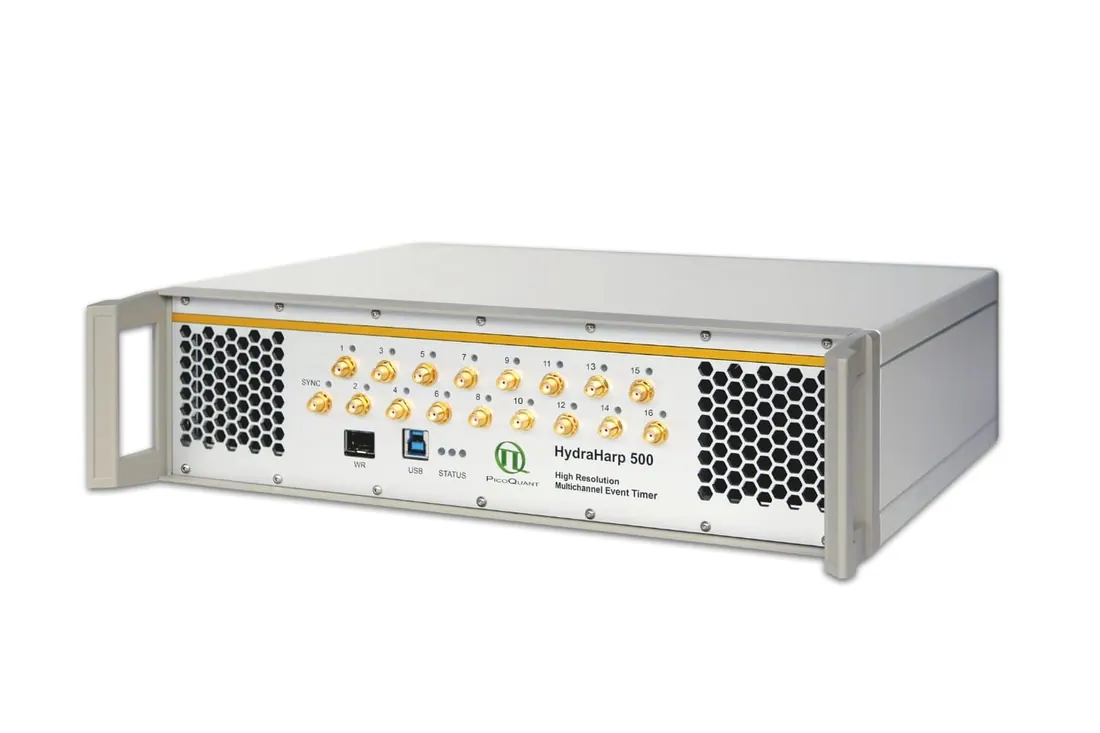

HydraHarp 500
Brand: PicoQuant | Category: Nanotechnology
The HydraHarp 500 is a multichannel time tagging and TCSPC unit for photon counting experiments. It records photon arrival times with a 1 ps minimum time bin width and typical timing precision of 3.5 ps RMS. Channel counts can be extended above the four channel base model as an experiment grows.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of detector channels (in addition to sync input) | 4 (Base model) | 5-8 with channel upgrades (HydraHarp 500 S), 5-16 with channel upgrades (HydraHarp 500 M) |
| Minimum time bin width | 1 ps |
| Timing precision | 3.5 ps RMS typ. |
| Dead time | < 680 ps (level trigger) | 6.8 ns (CFD) |
| Peak count rate per input channel | 1.25 Gcps for burst durations up to 2048 events |
| Sustained count rate per input channel | 80 Mcps, total 85 Mcps summed over all input channels |
