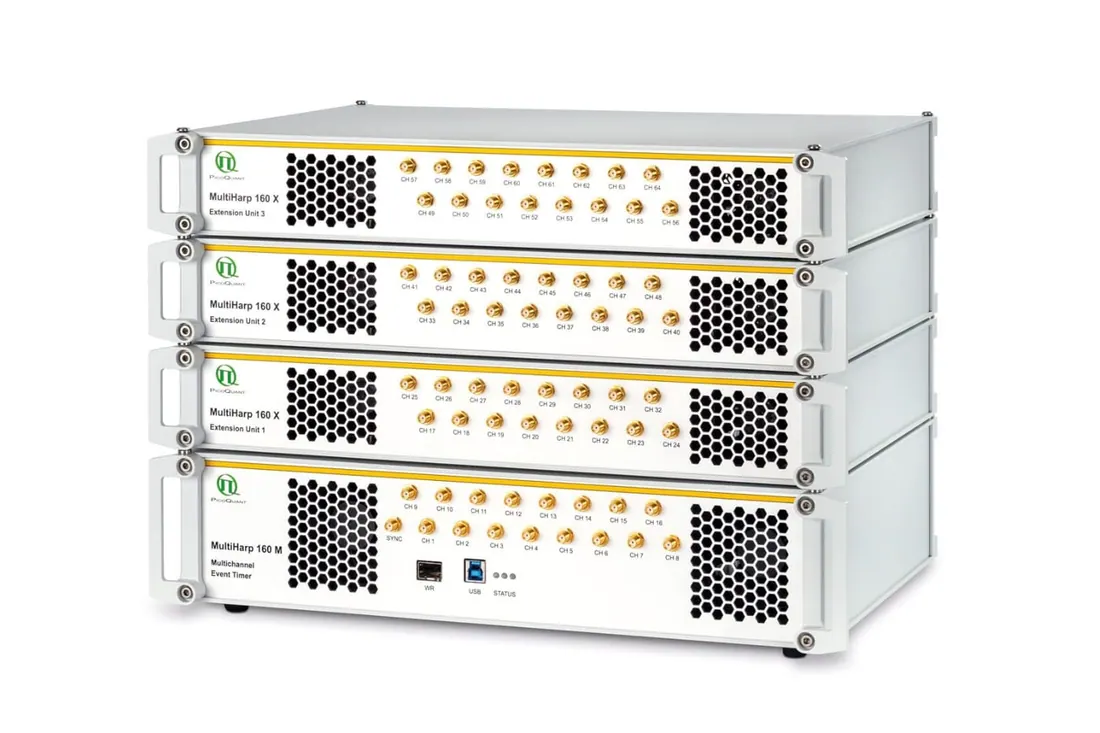

MultiHarp 160
Brand: PicoQuant | Category: Nanotechnology
The MultiHarp 160 is a high-throughput multichannel time tagging and TCSPC unit. It records photon arrival times on 16 channels in the main unit, extendable to 64 channels with extension units, at a 5 ps minimum time bin width. It is used for quantum communication research and detector testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of detector channels (in addition to Sync input) | 16 (main unit) | 32, 48 or 64 with one, two or three extension units |
| Minimum time bin width | 5 ps |
| Timing precision | < 28 ps RMS |
| Dead time | < 650 ps (can be increased via software up to 160 ns in steps of 1 ns) |
| Peak count rate per input channel | 1.5 Gcps for burst duration of 2048 events |
| Total sustained count rate, sum over all input channels | 80 Mcps via USB 3.0 interface |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
