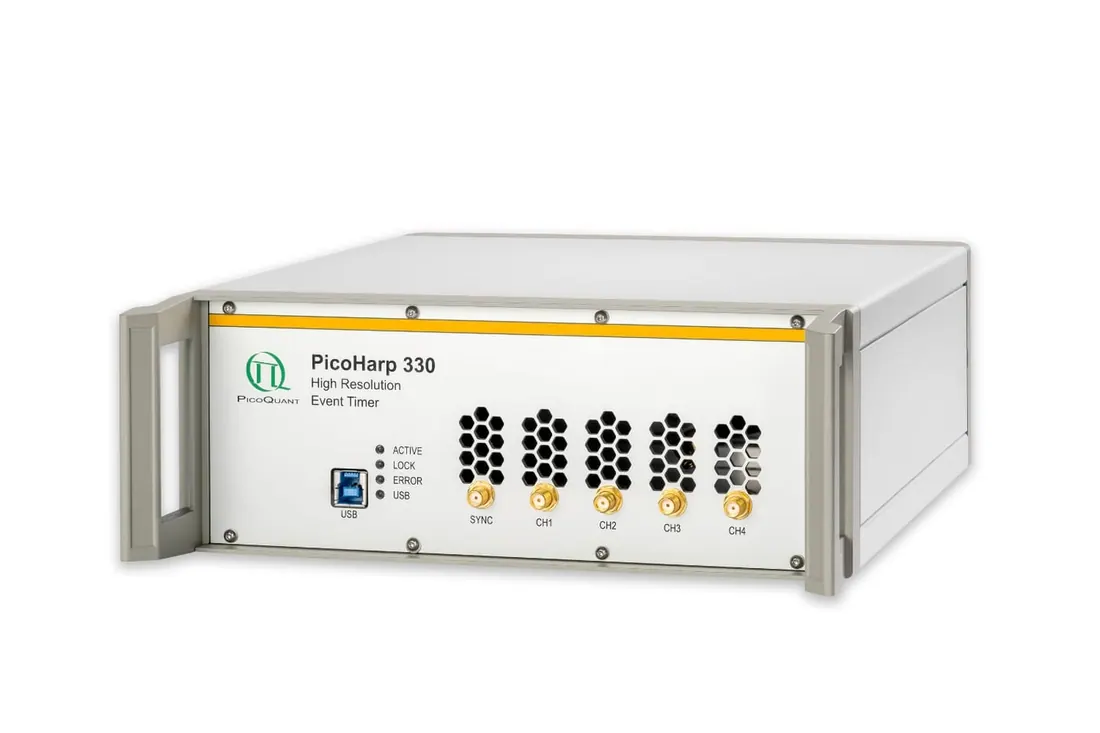

PicoHarp 330
Brand: PicoQuant | Category: Nanotechnology
The PicoHarp 330 is a time tagging and TCSPC unit for photon counting measurements. It offers a 1 ps minimum time bin width, typical timing precision of 3 ps RMS and 680 ps dead time with level triggering. The base model has one detector channel and can be upgraded to four.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of detector channels (in addition to Sync input) | 1 (Base model) | 2, 3 or 4 (Base model + channel upgrades) |
| Minimum time bin width | 1 ps |
| Timing precision | 3 ps RMS typ. |
| Dead time | 680 ps for level trigger | 4.2 ns with CFD |
| Peak count rate per input channel | 1.47 Gcps for 1000 events |
| Sustained count rate per input channel | 80 Mcps, total 85 Mcps via USB 3.0 interface |
