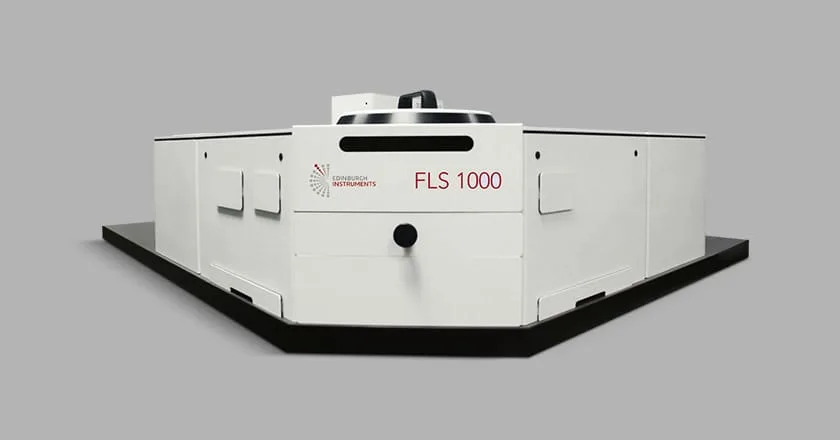

FLS1000: Photoluminescence Spectrometer
Brand: Edinburgh Instruments | Category: Nanotechnology
Modular research spectrometer for steady state and time-resolved photoluminescence, built around Czerny-Turner monochromators with plug and play triple grating turrets. Sources, detectors and sample chambers are interchangeable, so one instrument covers spectral, fluorescence lifetime and phosphorescence lifetime work. Double monochromators are available where stray light rejection matters.
Technical Specifications
| Parameter | Value |
|---|---|
| Steady-state excitation source | 450 W ozone-free xenon arc lamp |
| Phosphorescence lifetime range | 10 ns–50 s; source and detector dependent |
| Fluorescence lifetime range | 5 ps–10 µs; source and detector dependent |
| Monochromator focal length | 325 mm; double monochromators use 2 × 325 mm |
| Wavelength accuracy | ±0.2 nm; grating dependent |
| Minimum wavelength step | 0.01 nm; grating dependent |
| Grating selection | Triple-grating turret |
Selected FLS1000 manufacturer specifications. Steady-state, phosphorescence and fluorescence-lifetime measurements use different sources and detection configurations. Source, detector and grating qualifications are retained with each affected rating; confirm which modes and components are included. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
