FME04: Orifice Discharge
Brand: EDIBON | Category: Scientific & Laboratory Equipment

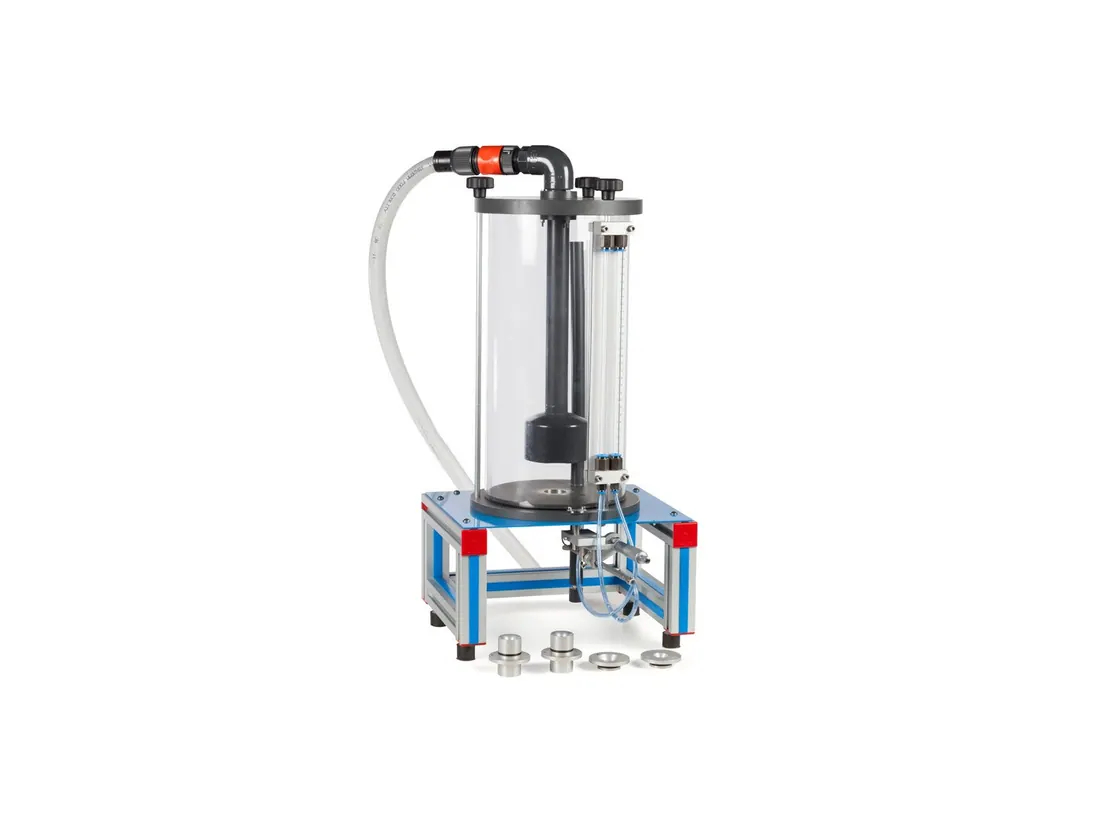

FME04 is used to study flow through a sharp edged orifice under constant head. The trajectory of the jet and the volume collected give the coefficients of velocity, contraction and discharge for the orifice under test.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum head | 400 mm |
| Mouthpiece types | Diaphragm, colloidal, two Venturi types and cylindrical |
| Unit dimensions | 450 x 450 x 900 mm approx. |
| Unit weight | 15 kg approx. |
Selected data from the model-specific panel on page 15 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
