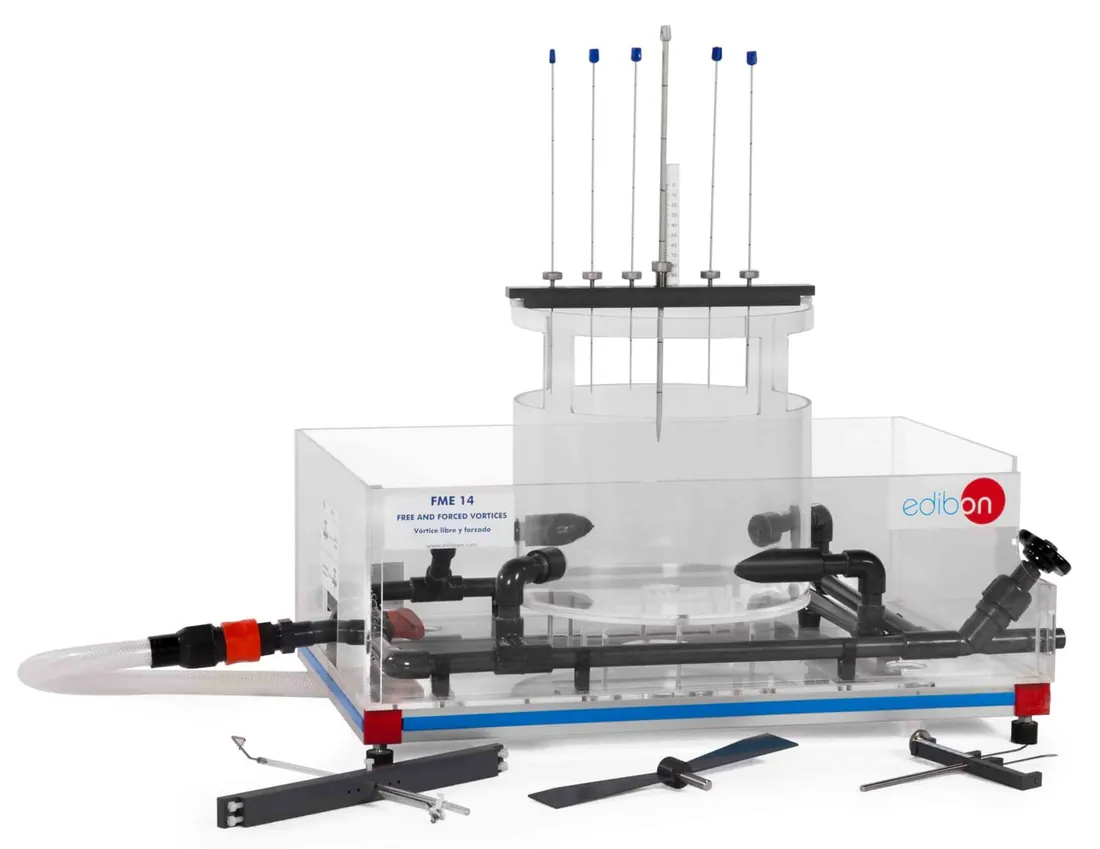

FME14: Free and Forced Vortex
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME14 is used to produce and measure free and forced vortices. Tangential inlets generate a free vortex and a paddle generates a forced vortex, and the surface profile is measured with a depth gauge for comparison with theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Tank diameter | 300 mm |
| Tank height | 300 mm |
| Mouthpiece orifice diameters | 8, 16 and 24 mm |
| Unit dimensions | 600 x 550 x 1400 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 15 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
