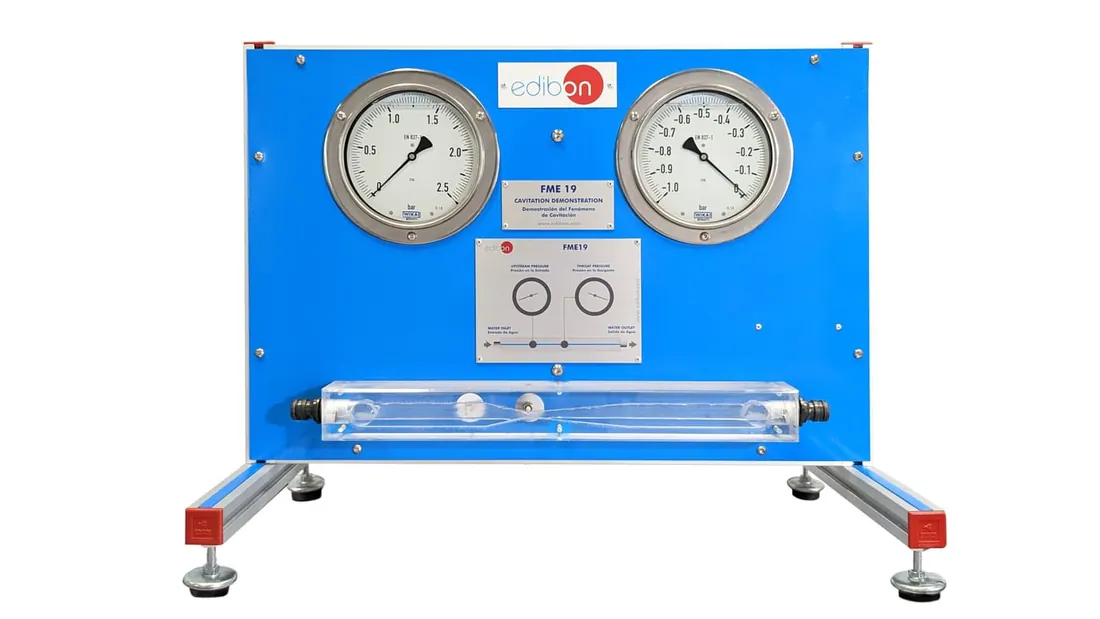

FME19: Cavitation Phenomenon Demonstration
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME19 demonstrates cavitation in a flowing liquid. Water passes through a transparent venturi where the throat pressure is lowered until vapour bubbles form and then collapse downstream, showing the conditions under which cavitation occurs.
Technical Specifications
| Parameter | Value |
|---|---|
| Pressure manometer range | 0–2.5 bar |
| Vacuum gauge range | −1 to 0 bar |
| Throat section | 36 mm² |
| Normal section | 150 mm² |
| Unit dimensions | 750 x 400 x 650 mm approx. |
| Unit weight | 5 kg approx. |
Selected data from the model-specific panel on page 16 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
