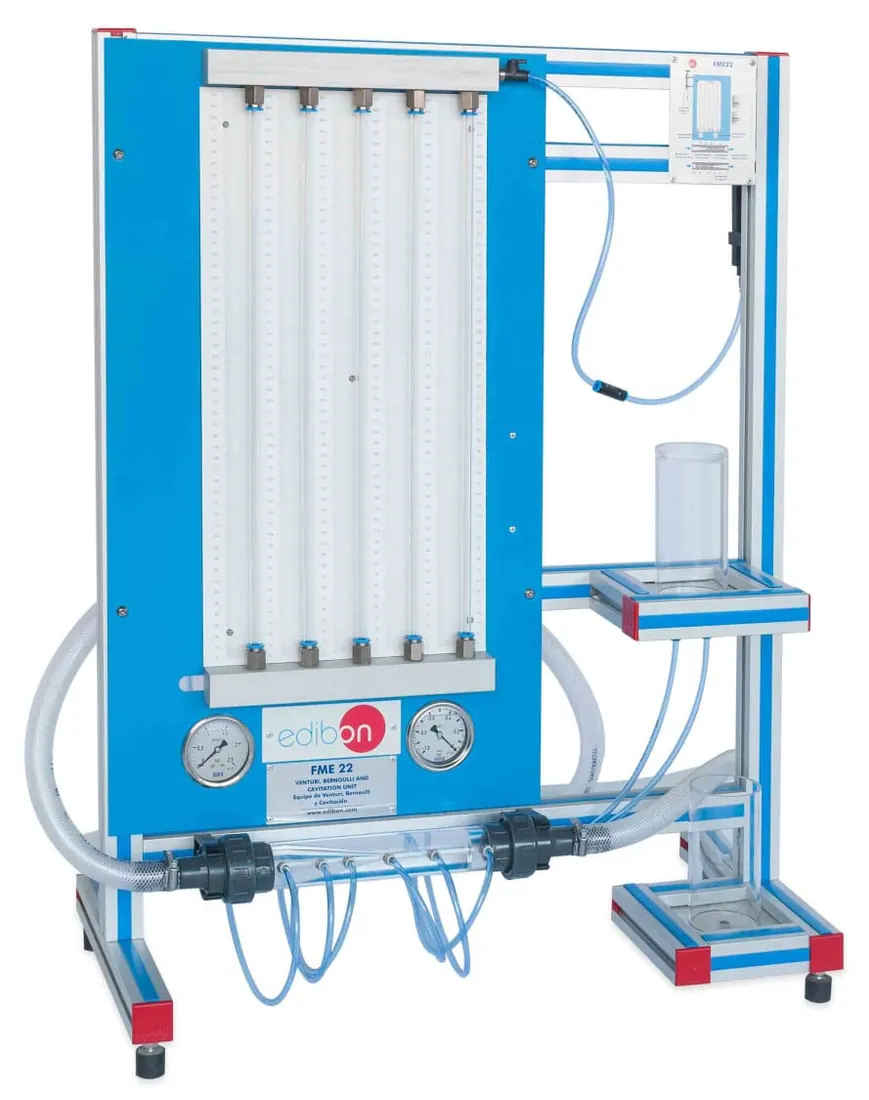

FME22: Venturi, Bernoulli and Cavitation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME22 combines venturi flow measurement, verification of the Bernoulli theorem and a cavitation demonstration in one module. Pressure is read at tappings along a transparent venturi so the energy line can be plotted and the onset of cavitation observed.
Technical Specifications
| Parameter | Value |
|---|---|
| Pressure manometer range | 0–2.5 bar |
| Vacuum manometer range | −1 to 0 bar |
| Differential manometer range | 0–500 mm |
| Venturi pressure tappings | 6 |
| Unit dimensions | 750 x 400 x 850 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 17 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
