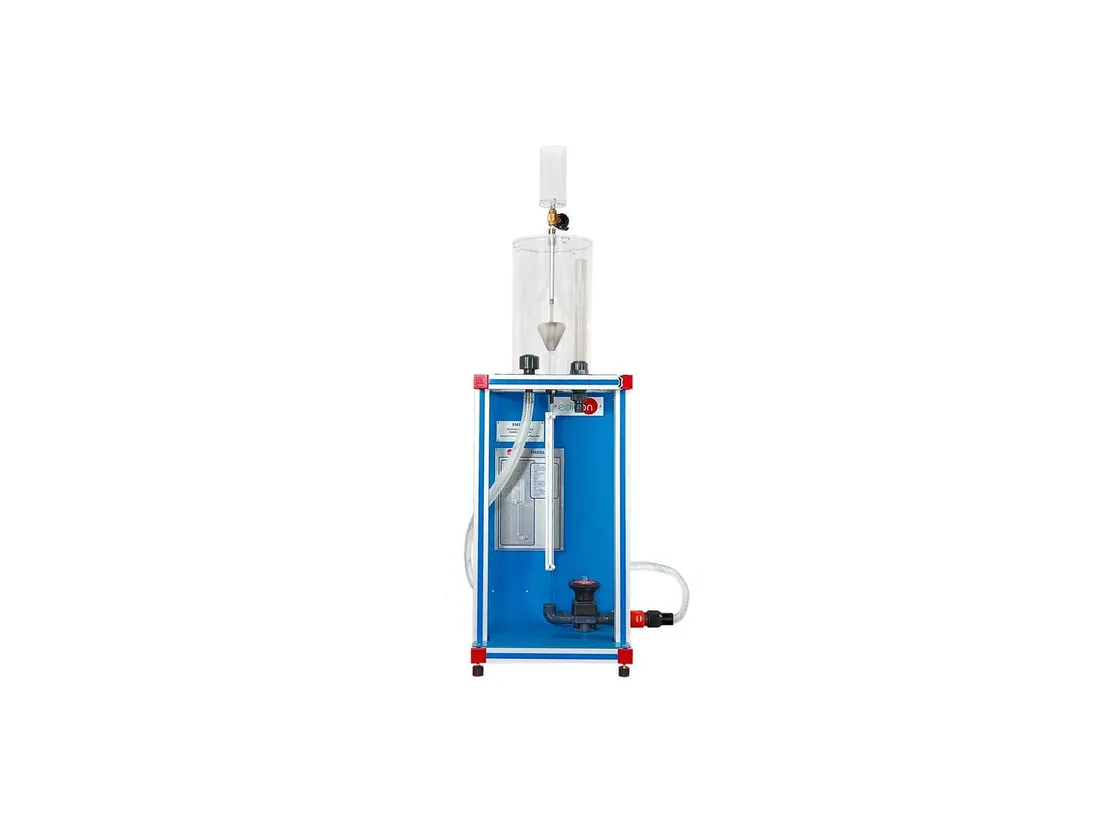

FME06: Osborne Reynolds' Demonstration
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME06 reproduces the classic Reynolds experiment. A dye filament is injected into water flowing through a glass tube so laminar, transitional and turbulent flow can be seen and the corresponding Reynolds numbers calculated. A horizontal version, FME31, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Tube inner / outer diameter | 10 / 13 mm |
| Visualization pipe length | 700 mm |
| Dye tank capacity | 0.3 l |
| Water tank capacity | 10 l |
| Unit dimensions | 450 x 450 x 1250 mm approx. |
| Unit weight | 20 kg approx. |
Selected data from the model-specific panel on page 18 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
