FME17: Orifice and Free Jet Flow
Brand: EDIBON | Category: Scientific & Laboratory Equipment

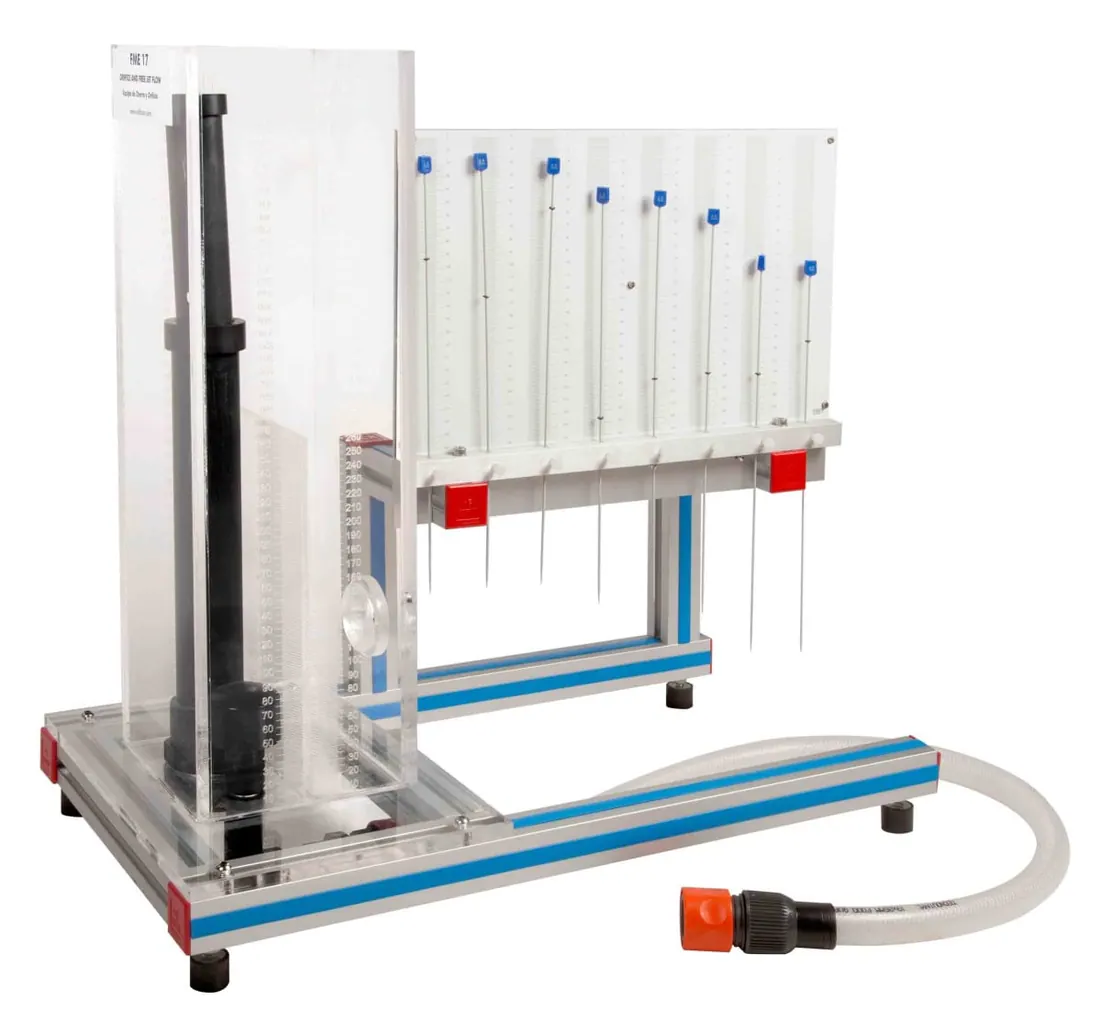

FME17 is used to study the free jet issuing from an orifice. The jet path is traced with a row of adjustable needles so the trajectory can be plotted and the coefficient of velocity determined at different heads.
Technical Specifications
| Parameter | Value |
|---|---|
| Orifice diameters | 3.5 and 6 mm |
| Jet-trajectory probes | 8 |
| Maximum height | 500 mm |
| Unit dimensions | 600 x 550 x 1400 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 16 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
