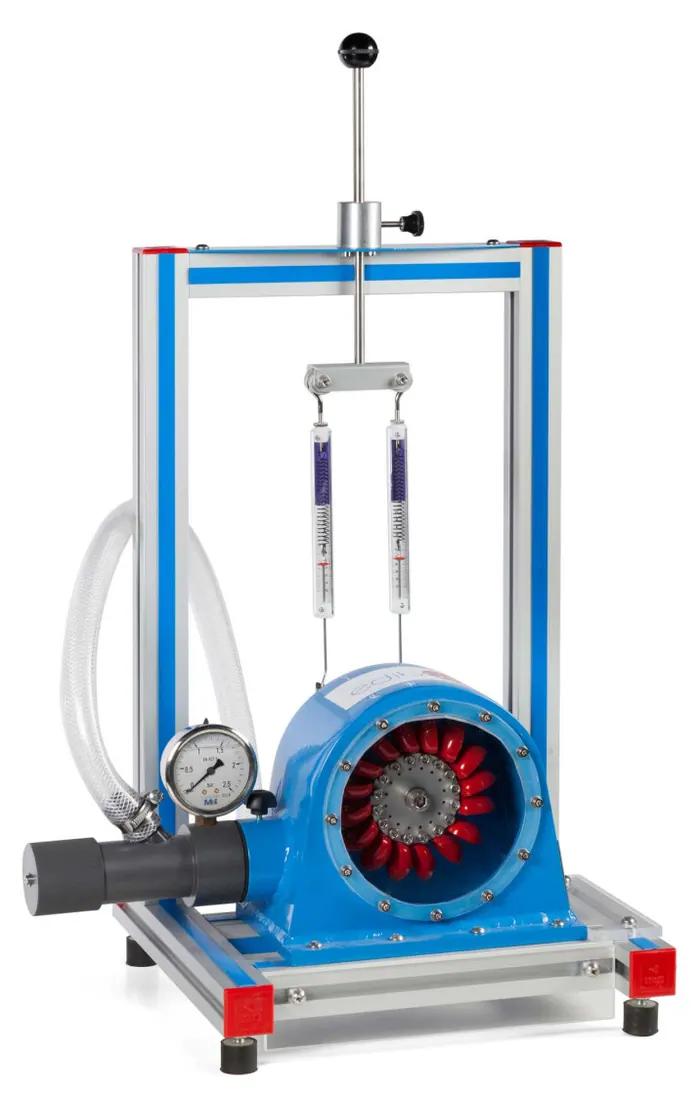

FME16: Pelton Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME16 is a bench module for testing a Pelton impulse turbine. Head, flow, speed and brake torque are measured so power output, efficiency and the characteristic curves at different nozzle settings can be plotted.
Technical Specifications
| Parameter | Value |
|---|---|
| Speed range | 0–2000 rpm |
| Power | 10 W |
| Pressure manometer range | 0–2.5 bar |
| Pelton buckets | 16 |
| Dynamometer range | 0–20 N |
| Unit dimensions | 750 x 400 x 750 mm approx. |
| Unit weight | 15 kg approx. |
Selected data from the model-specific panel on page 24 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
