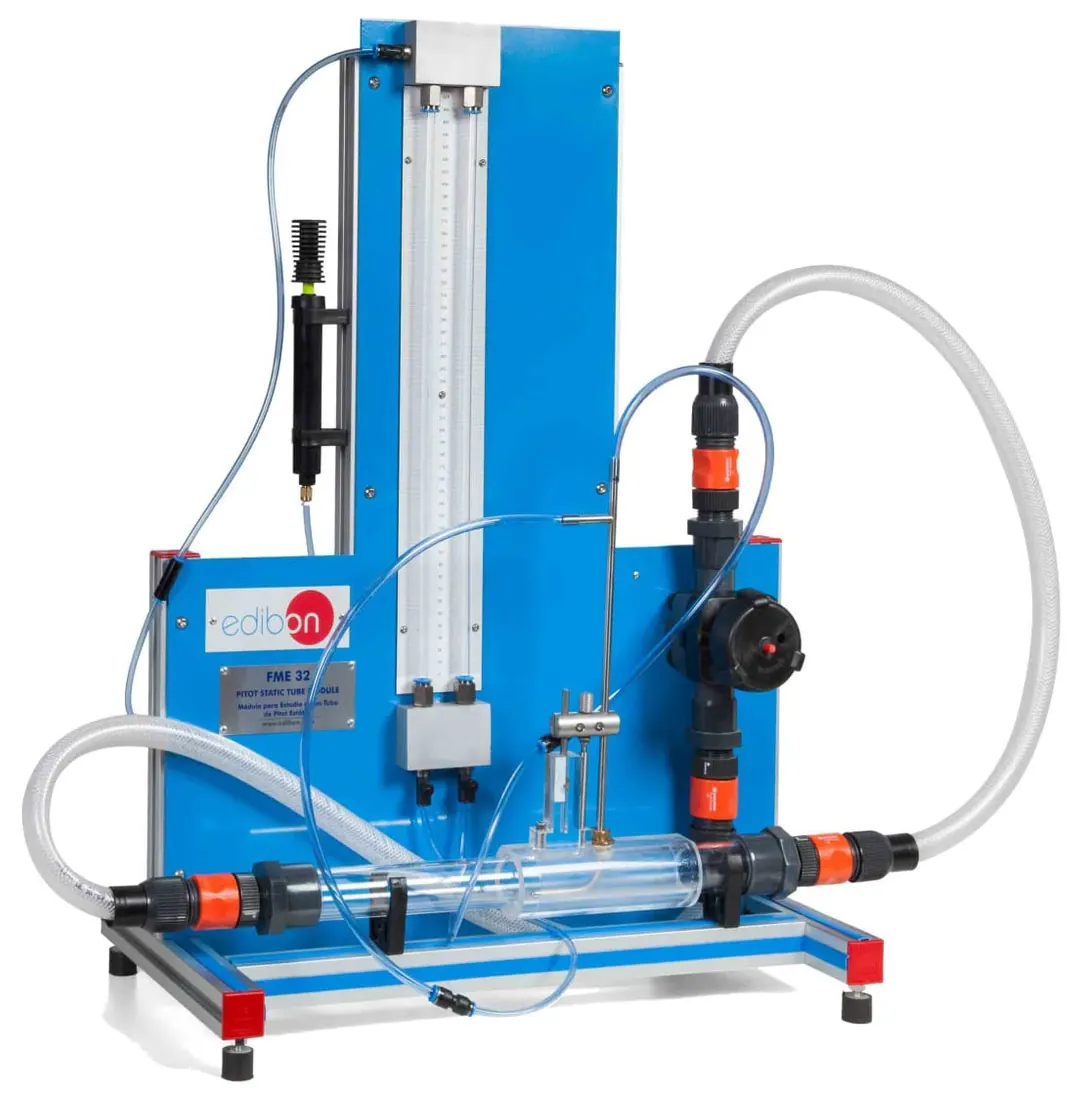

FME32: Static Pitot Tube
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME32 is a Pitot static tube module for measuring local velocity in a pipe. Total and static pressure tappings are connected to a manometer so the velocity head can be read and a velocity profile built up across the section.
Technical Specifications
| Parameter | Value |
|---|---|
| Pitot-static tube head diameter | 2.5 mm |
| Transparent pipe | 32 mm internal diameter; 430 mm length approx. |
| Water manometer length | 500 mm |
| Unit dimensions | 800 x 450 x 700 mm approx. |
| Unit weight | 15 kg approx. |
Selected data from the model-specific panel on page 9 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Fluid mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
