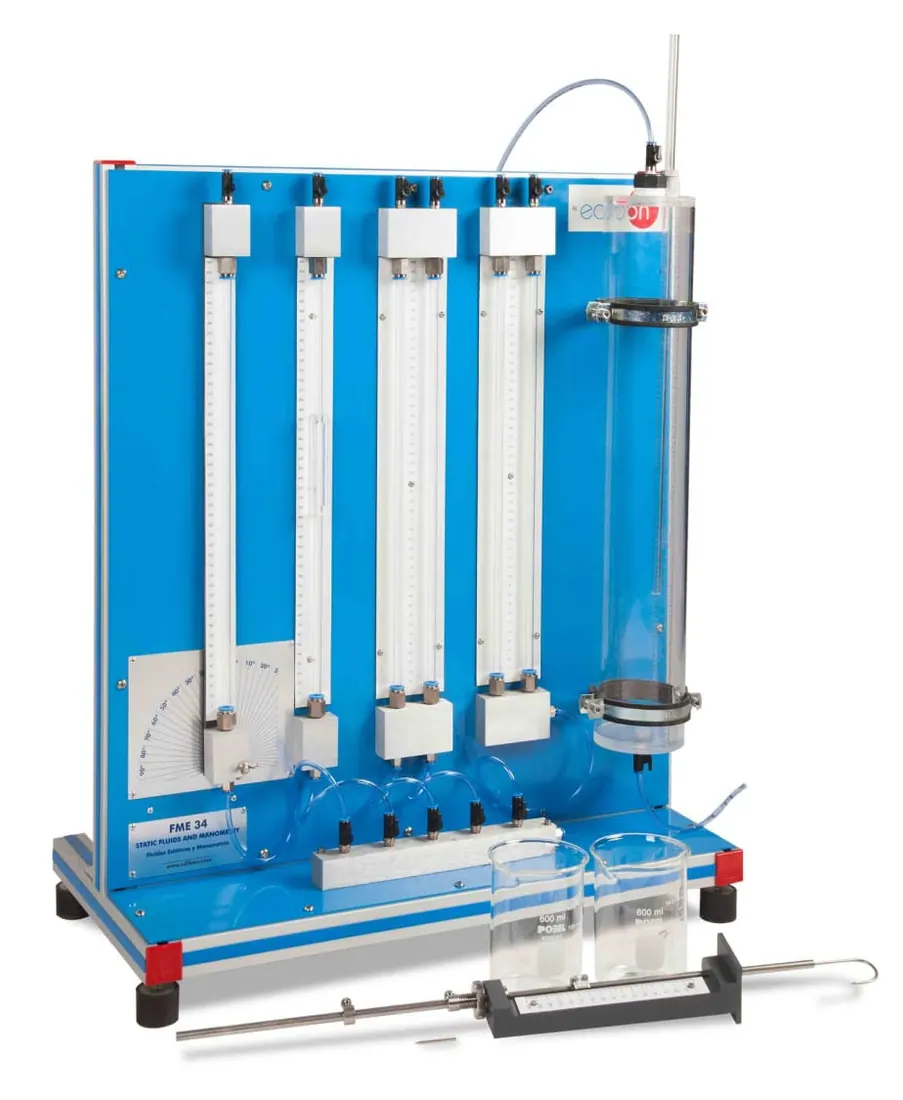

FME34: Fluid Statics and Manometry
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME34 is a module for teaching pressure measurement with liquid columns. U tube, inclined and well type manometers are connected to a pressurised vessel so students can compare readings and study the effect of tube inclination on sensitivity.
Technical Specifications
| Parameter | Value |
|---|---|
| Tank | Methacrylate; 100 mm diameter × 575 mm height |
| Manometer tube length | 460 mm |
| Inclined-tube adjustment | 0–90° |
| Unit dimensions | 700 x 350 x 800 mm approx. |
| Unit weight | 15 kg approx. |
Selected data from the model-specific panel on page 9 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
