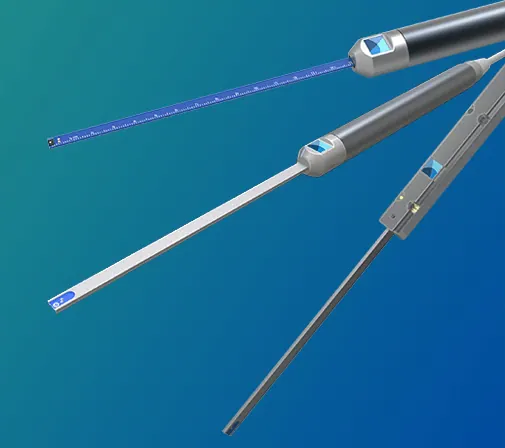

FP Series Hall Probes
Brand: Lake Shore | Category: Nanotechnology
FP Series Hall probes measure magnetic flux density in 3-axis (vector), transverse and axial forms. Each probe uses an InAs sensing element with a built-in thermistor for temperature compensation. Stem lengths of 50 mm, 150 mm and 300 mm are available with handheld or mountable handles.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | NS-180 InAs standard sensor, active area 0.1 mm2 |
| Built-in thermistor temperature range | 0 °C to 90 °C |
| Stem lengths | 50 mm, 150 mm and 300 mm |
| 3-axis stem | anodized aluminum tube with a 4 mm square cross-section |
| Transverse stem | anodized aluminum tube with a 1.5 mm maximum thickness by 4.5 mm rectangular cross-section |
| Handle operating temperature range | 0 °C to 80 °C |
